Motors - 2-Pole & Gearbox - Storm Ranger X & H.S.M. Option

Print this page

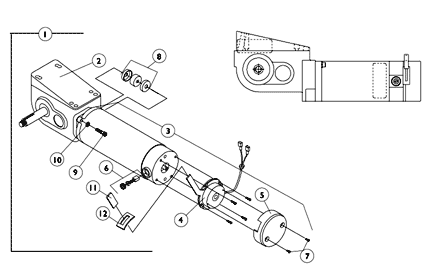

2-Pole Motor and Gearbox

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

See Chart

Added to Cart

Item Number		Description		Before 9/15/98 Storm Ranger X RWD-R MWD-L		Before 9/15/98 Storm Ranger X RWD-L MWD-R		Before 9/15/98 Storm Ranger X with H.S.M. Option RWD-R MWD-L		Before 9/15/98 Storm Ranger X with H.S.M. Option RWD-L MWD-R
1.		Motor/Gearbox		1070437- NLA		1070438- NLA		Note-C 1070441- NLA		Note-C 1070442- NLA
2.		Gear Box		1070460- NLA		1070461- NLA		Note-C 1070460- NLA		Note-C 1070461- NLA
3.		Motor Assembly		1070505- NLA		1070506- NLA		Note-C 1070507- NLA		Note-C 1070508- NLA
3.		WARR RPLMT - Motor Assembly		1070505E- NLA		1070506E- NLA		Note-C 1070507E- NLA		Note-C 1070508E- NLA
4.		Brake Repair Kit		1064112- NLA		1064111- NLA		1064112- NLA		1064111- NLA
5.		Brake Cover with Screws		1064113- NLA		1064114- NLA		1064113- NLA		1064114- NLA
6.		Brushes with Caps (Pair)		1064336- NLA		1064336- NLA		1064336- NLA		1064336- NLA
7.		Screw (#4-40 x 1/4")		1050305- NLA		1050305- NLA		1050305- NLA		1050305- NLA
8.				Note-A 5165204- NLA		Note-A 5165204- NLA		Note-A 5165204- NLA		Note-A 5165204- NLA
8.				Note-B 50000X007- NLA		Note-B 50000X007- NLA		Note-B 50000X007- NLA		Note-A ,B 50000X007- NLA
9.		Screw (1/4-20 x 1-1/8")		1043594 MSRP: $10.00		1043594 MSRP: $10.00		1043594 MSRP: $10.00		1043594 MSRP: $10.00
10.		Lockwasher		10502X001- NLA		10502X001- NLA		10502X001- NLA		10502X001- NLA
11.		Plastic Tip		1006490 MSRP: $8.00		1006490 MSRP: $8.00		1006490 MSRP: $8.00		1006490 MSRP: $8.00
12.		Slotted Plate		1057972- NLA		1057972- NLA		1057972- NLA		1057972- NLA

Create/add to Wishlist

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	Coupling with Cup for chairs manufactured before 11/12/05 - Use part # 50000X007 as a direct replacement part.
B	After 11/11/01 Coupling with Cup was resized from approximately 1" to 1-5/16" diameter and can be used as a direct replacement for part number 5165204
C	No Longer Available (NLA). Convert to a right and left 4-Pole Motor/Gearbox Assembly part #'s 1085951 & 1085952

2-Pole Motor and Gearbox

N/A

N/A

N/A
