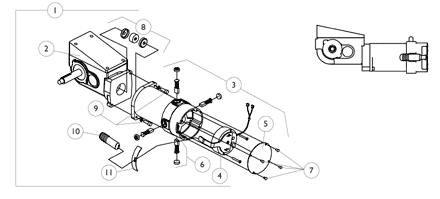

Motors - 4-Pole & Gearboxes - Storm Arrow - Arrow H.D. - ALL Torques & Ranger X

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

See Chart

Added to Cart

Item Number

Description

After 8/31/98 Storm Arrow and Torque RWD-R MWD-L

After 8/31/98 Storm Arrow and Torque RWD-L MWD-R

After 10/22/98 Storm Arrow Heavy Duty and ALL Torque SP RWD-R MWD-L

After 10/22/98 Storm Arrow Heavy Duty and ALL Torque SP RWD-L MWD-R

After 9/14/98 Storm Ranger X RWD-R MWD-L

After 9/14/98 Storm Ranger X RWD-L MWD-R

Motor Gearbox Before 7/11/01

Note-F

1085951- NLA

Note-F

1085952- NLA

Note-F

1086215- NLA

Note-F

1086216- NLA

Note-F

1085951- NLA

Note-F

1085952- NLA

WARR RPLMT - Motor Gearbox Before 7/11/01

Note-I

1085951E- NLA

Note-J

1085952E- NLA

N/A

Note-I

1085951E- NLA

Note-J

1085952E- NLA

Motor Gearbox After 7/10/01

Note-D ,F

1104823

MSRP: $1,184.00

Note-D ,F

1104824

MSRP: $1,184.00

Note-D ,F

1104825

MSRP: $1,020.00

Note-D ,F

1104826

MSRP: $1,020.00

Note-D ,F

1104823

MSRP: $1,184.00

Note-D ,F

1104824

MSRP: $1,184.00

Gearbox

Note-C

1086223

Note-C

1086224- NLA

Note-C

1086225- NLA

Note-C

1086226- NLA

Note-C

1086223

Note-C

1086224- NLA

Motor Assembly Before 7/11/01

1086581- NLA

1070291- NLA

1086581- NLA

1070291- NLA

1086581- NLA

1070291- NLA

Motor Assembly After 7/10/01

Note-E

1104869- NLA

Note-E

1104870- NLA

Note-E

1104869- NLA

Note-E

1104870- NLA

Note-E

1104869- NLA

Note-E

1104870- NLA

Brake Repair Kit

Note-H

1070294- NLA

Note-H

1070295- NLA

Note-H

1070294- NLA

Note-H

1070295- NLA

Note-H

1070294- NLA

Note-H

1070295- NLA

Brake Cover with Screws Before 7/11/01

1070297- NLA

Brake Cover (black) with Screws After 7/10/01

1104402- NLA

Brushes with Caps

Note-G

1070296- NLA

Note-G

1070296- NLA

Note-G

1070296- NLA

Note-G

1070296- NLA

Note-G

1070296

Part/Kit Description	Qty/Pkg	Qty/Asbly
Brush, Motor, 4 Pole	1	4
Cap, Brush	1	4
Instruction Sheet	1	1

MSRP: $56.00

Note-G

1070296- NLA

Screw (#8-32 x 1/4")

See Item 5

Note-A

5165204- NLA

Note-A

5165204- NLA

Note-A

5165204- NLA

Note-A

5165204- NLA

Note-A

5165204- NLA

Note-A

5165204- NLA

Note-B

50000X007- NLA

Note-B

50000X007- NLA

Note-B

50000X007- NLA

Note-B

50000X007- NLA

Note-B

50000X007- NLA

Note-B

50000X007- NLA

Screw, SHC (1/4-20 x 1-1/8")

Note-C

1043594

MSRP: $10.00

Note-C

1043594

MSRP: $10.00

Note-C

1043594

MSRP: $10.00

Note-C

1043594

MSRP: $10.00

Note-C

1043594

MSRP: $10.00

Note-C

1043594

MSRP: $10.00

Screw, SHC (M6 x 1 x 20MM)

Note-C

1108978

MSRP: $9.00

Note-C

1108978

MSRP: $9.00

Note-C

1108978

MSRP: $9.00

Note-C

1108978

MSRP: $9.00

Note-C

1108978

MSRP: $9.00

Note-C

1108978

MSRP: $9.00

10.

Plastic Tip Before 7/11/01

1082984- NLA

10.

Plastic Tip After 7/10/01

1101725

MSRP: $8.00

1101725

MSRP: $8.00

1101725

MSRP: $8.00

1101725

MSRP: $8.00

1101725

MSRP: $8.00

1101725

MSRP: $8.00

11.

Slotted Plate

1082985- NLA

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	Coupling with Cup for chairs manufactured before 11/12/01 - Use part # 50000X007 as a direct replacement part.
B	After 11/11/01 Coupling with Cup was resized from approximately 1" to 1-5/16" diameter and can be used as a direct replacement for part number 5165204
C	When a new gearbox or mounting screws are ordered, (2 ea.) metric and (2 ea.) non-metric screws (item 9) must be ordered. Invacare Corp. utilizes alternate suppliers for this part number.
D	As of 4/27/07 the 2nd and 3rd Generation Storm Series models will share this same Motor/Gearbox Assembly service part number. For 2nd Generation Storm Series, disregard the 3200 RPM and Drive/Push Decals packaged in box.
E	2nd and 3rd Generation Storm Series models share the same Motor Assembly service part number. For 2nd Generation Storm Series, disregard the 3200 RPM and Drive/Push Decals packaged in box.
F	As of May 2008, the Metal Motor End Cap will be replaced with a Composite Motor End Cap. The change does not affect form, fit, function or aesthetics.
G	Kit includes (4) Brushes, (4) Brush Caps and Instruction Sheet.
H	Use existing screws when installing the Brake Repair Kit. The Motor Brake Mounting Screws are not saleable.
I	Part is no longer available as a service part. See part number 1085951 as a replacement.
J	Part is no longer available as a service part. See part number 1085952 as a replacement.

4-Pole Motors and Gearboxes
