Forks and Hardware

Print this page

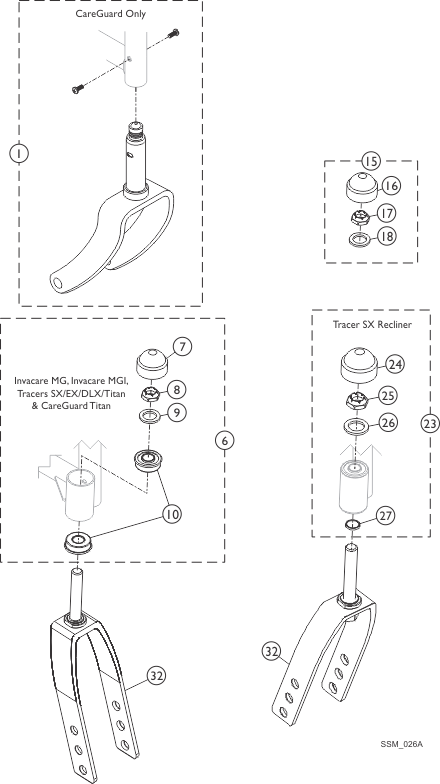

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1080098

NLA - Fork Assembly

N/A

Create/add to Wishlist

1074612

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
7	Cap, Head Tube, Black	2	1
8	Locknut (1/2-20)	2	1
9	Washer, Nylon (5/8 x 1 x 3/32")	2	1
10	Bearing, Flange (1/2")	4	1

Kit, Fork Hardware (Pair)

$52.00

Create/add to Wishlist

1033202

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
16	Cap, Head Tube, Black	1	2
17	Locknut (1/2-20)	1	2
18	Washer, Nylon (5/8 x 1 x 3/32")	1	2
2	Cap, Head Tube, Black	1	2
3	Locknut (1/2-20)	1	2
4	Washer, Nylon (5/8 x 1 x 3/32")	1	2
3	Locknut (1/2-20)	1	2
2	Cap, Head Tube, Black	1	2
4	Washer, Nylon (5/8 x 1 x 3/32")	1	2

Kit, Fork Hardware (Pair)

$20.00

Create/add to Wishlist

1089104

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Cap, Head Tube, Black	1	1
3	Locknut (1/2-20)	1	1
5	Washer, Steel (17/32 x 3/4 x 1/32")	1	1
24	Cap, Head Tube, Black	2	1
25	Locknut (1/2-20)	2	1
26	Washer, Nylon (5/8 x 1 x 3/32")	2	1
27	Washer, Steel (17/32 x 3/4 x 1/32")	2	1
2	Cap, Head Tube, Black	1	2
7	Washer, Steel (17/32 x 3/4 x 1/32")	1	2
4	Washer, Nylon (5/8 x 1 x 3/32")	1	1
3	Locknut (1/2-20)	1	2
4	Washer, Nylon (5/8 x 1 x 3/32")	1	2

Kit, Fork Hardware (Pair)

$10.00

Create/add to Wishlist

1001801

Bearing, Flange (1/2")

$8.00

Create/add to Wishlist

1037420

Fork and Stem Assembly, Black (6 x 1" Caster)

$100.00

Create/add to Wishlist

1070817

NLA - Fork and Stem Assembly (8")

N/A

Create/add to Wishlist

1075529

Fork and Stem, Steel, Black (8" Caster)

$58.00

Create/add to Wishlist

1089103

Fork and Stem, Aluminum, Black (8" Caster)

$79.00

Create/add to Wishlist

1131189

Package, Head Tube Cap

$36.00

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Used on CareGuard.
B	Includes items 7-10.
C	Includes items 16-18.
D	Includes items 24-27.
E	Used on Tracer DLX, EX, SX and Invacare MGI.
F	Used on Tracer DLX, SX and Titan.
G	Used on Invacare MG, MGI and Tracer EX.
H	Used on Tracer SX Recliner.
I	Not Shown.

Catalog Literature

Parts Books for Tracer® DLX Tracer® EX Invacare® MG Tracer® SX Tracer® SX Recliner Tracer® Titan™ (After 1/98) CareGuard™ by Invacare® CareGuard™ Titan™ by Invacare®
