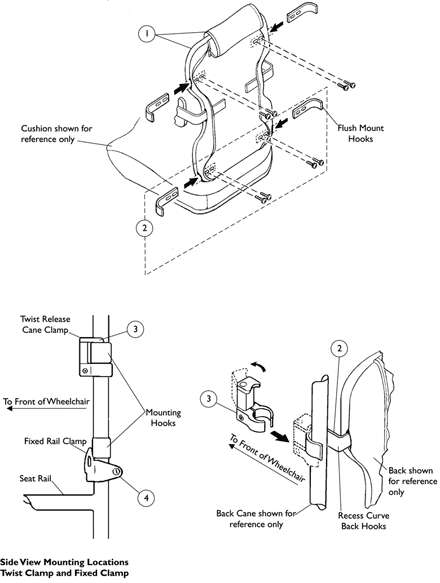

Curved Back and Curved Back Pneumatic Covers, Cane Clamps and Back Mounting Hooks

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

See Chart

Added to Cart

Part Numbers		Width x Height
1063805- NLA		10" x 10"
1063799- NLA		12" x 12"
1063800- NLA		14" x 14"
1063801- NLA		16" x 16"
1063802- NLA		16" x 20"
1063803- NLA		18" x 20"
1063804- NLA		20" x 20"

Create/add to Wishlist

Item #1 Back Covers

N/A

Create/add to Wishlist

See Chart

Added to Cart

Width x Tubing Diameter	Flush Mount (Qty 2 ea.)	1" Recess (Qty 2 ea.)	2" Recess (Qty 2 ea.)	3" Recess (Qty 2 ea.)
10" x 7/8" and 1"	Note-A 1063289- NLA	N/A	N/A	N/A
12" x 7/8"	N/A	1063296- NLA	1063297- NLA	1063298- NLA
12" x 1"	N/A	1063299- NLA	1063300- NLA	1063301- NLA
14" x 7/8"	N/A	1063074- NLA	1063075- NLA	1063076- NLA
14" x 1"	N/A	1063077- NLA	1063078- NLA	1063079- NLA
16" x 7/8"	N/A	1063308- NLA	1063309- NLA	1063310- NLA
16" x 1"	N/A	1063311- NLA	1063312- NLA	1063313- NLA
18" x 7/8"	N/A	1063314- NLA	1063315- NLA	1063316- NLA
18" x 1"	N/A	1063317- NLA	1063318- NLA	1063319- NLA
20" x 7/8"	N/A	1063320- NLA	1063321- NLA	1063322- NLA
20" x 1"	N/A	1063323- NLA	1063324- NLA	1063325- NLA

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	10" wide back wheelchairs will use only Flush Mount Hooks

Item #2 Curved Back and Curved Back Pneumatic Back Hooks

N/A

Create/add to Wishlist

1063331

NLA - Clamps, Cane, Twist Release (1" Tubing) (Pair)

N/A

Create/add to Wishlist

1063332

NLA - Clamps, Cane, Twist Release (7/8" Tubing) (Pair)

N/A

Create/add to Wishlist

5500318

NLA - Clamps, Fixed Rail w/ Instruction Sheet (7/8" and 1" Tubing) (Pair)

N/A

Create/add to Wishlist
