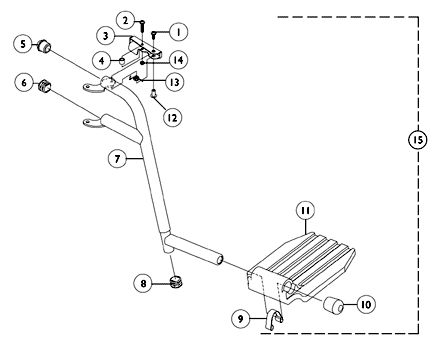

Front Riggings - Footrest Support Assembly - CG15
| Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
|---|---|---|---|---|---|---|---|
| 1 | 40163X002 | Screw, Phillips Round Head (#10-32 x 1/2") | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 2 | 40163X008 | Screw, Phillips Pan Head (#10-32 x 11/16") | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 3 | 1033305 | NLA - Handle, Release, Chrome - Right | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 3 | 1033306 | NLA - Handle, Release, Chrome - Left | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 4 | 47565X057 | Bushing (7/32 x 3/8 x 11/32") | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 5 | 1020719 | Anti-Rattle, Black | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 6 | 1027095 | Plug Button, Black (7/8") | 1 | 1 |
$9.20 |
Create/add to WishlistCreate/add to Wishlist |
|
| 7 | 1080033 | Tube, Footrest Support, Adult, Chrome - Right | 1 | 1 |
Create/add to WishlistCreate/add to Wishlist |
||
| 7 | 1080034 | NLA - Tube, Footrest Support, Adult, Chrome - Left | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 8 | 1027097 | Plug Button, Black (3/4") | 1 | 1 |
$7.50 |
Create/add to WishlistCreate/add to Wishlist |
|
| 9 | 1006981 | Spring, Tension | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 10 | 1016346 | Cap, End, Tube, Black (7/8") | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 11 | 1015178 | Footplate, Composite, Black (6" W x 7-53/64" L) | 1 | 1 |
$75.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 12 | 67005X000 | Rivnut (#10-32) | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 13 | 1008935 | Spring, Release - Right | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 13 | 1008936 | Spring, Release - Left | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 14 | 60279X003 | Locknut (#10-32) | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 15 | 1080035 | NLA - Footrest Support Assembly, Adult, Chrome - Right | 1 | 1 | N/A | A |
Create/add to WishlistCreate/add to Wishlist |
| 15 | 1080036 | NLA - Footrest Support Assembly, Adult, Chrome - Left | 1 | 1 | N/A | A |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
| Note Code | Definition |
|---|---|
| A | Includes items 1-14. |
