Front Riggings - Pivot Slide Tube & Footplates - T94AA/C and PAL4A

Print this page

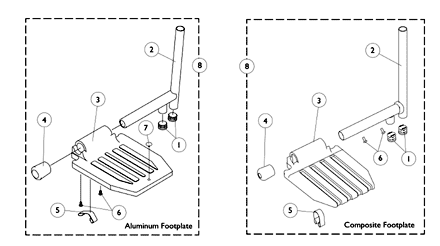

Front Rigging - Pivot Slide Tube and Footplates - T934A/C and PAL4A

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1027097	Plug Button, Black (3/4")	1	2	$7.50		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	7500085	NLA - Pivot/Slide Tube w/ Plug Button Assembly, Chrome	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1041526	Pivot/Slide Tube w/ Plug Button Assembly, Chrome	1	1	$31.00	D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	44200X027	Footplate, Aluminum, Medium, Black (7-3/4" W x 6" L)	1	1	$51.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1015178	Footplate, Composite, Black (6" W x 7-53/64" L)	1	1	$75.00	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1016346	Cap, End, Tube, Black (7/8")	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1006981	Spring, Tension	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	7930354	NLA - Package, Phillips Head Screw (#8-32 x 3/8")	25	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1070168	Plug, Push, Footplate	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1017237	NLA - Pivot/Slide Tube w/ Aluminium Footplate Assembly, Chrome - Right	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1017238	NLA - Pivot/Slide Tube w/ Aluminium Footplate Assembly, Chrome - Left	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1017233	NLA - Pivot/Slide Tube w/ Composite Footplate Assembly, Chrome - Right	1	1	N/A	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1017234	NLA - Pivot/Slide Tube w/ Composite Footplate Assembly, Chrome - Left	1	1	N/A	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1023907	Footplate w/Pivot Slide Tube - RH (18")	1	1	$99.00	D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1023908	Footplate w/Pivot Slide Tube - LH (18")	1	1	$99.00	D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	For T934A/C
B	For T934A
C	For T934C
D	For PAL4A

Catalog Literature

Parts Books for Pronto® M6
