Battery Box Hangers

Print this page

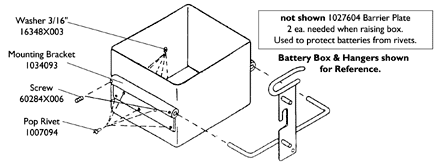

Mounting Bracket to Raise Battery Box

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

See Chart

Added to Cart

Description		Part Number
Barrier Plate (Not Shown) 2 each needed when raising box. Used to protect batteries from rivets.		1027604- NLA
Washer 3/16"		16348X003
Mounting Bracket		1034093- NLA
Screw		60284X006- NLA
Pop Rivet		1007094- NLA

Create/add to Wishlist

Create/add to Wishlist

Sectional Backs and Manual Recline Chairs over 14" Wide

N/A

N/A

N/A

See Chart

Added to Cart

Chair Description		Side		14" or 15" Wide		16" thru 18" Wide		19" thru 24" Wide
4M or 5M with Standard Crossbraces Sectional Back or Manual Recliner		Right		1029690- NLA		1027935- NLA		1033959- NLA
		Left		1029691- NLA		1027936- NLA		1033960- NLA
4M or 5M with Dual Crossbraces or Depth over 20" Sectional, Non-Sectional or Manual Recliner		Right		1035848- NLA		1033961- NLA		1033959- NLA
		Left		1035849- NLA		1033962- NLA		1033960- NLA
4M with L-2P and Standard Crossbraces Sectional Back or Manual Recliner		Right		1035576- NLA		1033961- NLA		N/A
		Left		1035577- NLA		1033962- NLA		N/A
4M with L-2P and Dual Crossbraces Sectional Back		Right		1035576- NLA		1033961- NLA		1033959- NLA
		Left		1035577- NLA		1033962- NLA		1033960- NLA
4M with L-2P and Standard Crossbraces Manual Recliner		Right		1035997- NLA		1033961- NLA		1027935- NLA
		Left		1035996- NLA		1033962- NLA		1027936- NLA
4M with L-2P and Dual Crossbraces Manual Recliner		Right		Order as a Special		1033961- NLA		N/A
		Left		Order as a Special		1033962- NLA		N/A
4M with Standard Crossbraces Power Back Recliner		Right		N/A		1027935- NLA		N/A
		Left		N/A		1027936- NLA		N/A

Create/add to Wishlist

Create/add to Wishlist

Battery Box Hangers

N/A

N/A

N/A

Catalog Literature

Parts Books for Action Series Arrow® 4M900/5M900 Ranger X™ M3900 Ranger II™ RM900
