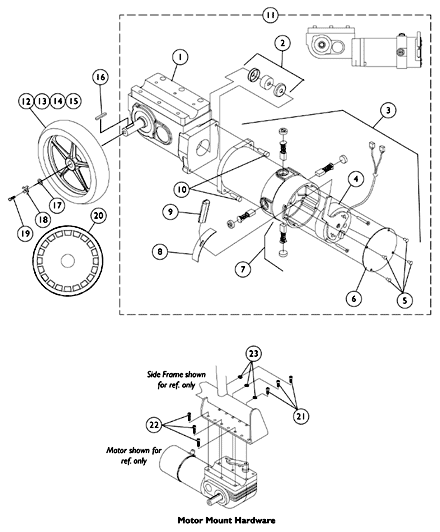

Item Number |
|
Description |
|
Part Number |
|
|
1 |
|
Gearbox - Right |
|
Note-E
|
|
|
1 |
|
Gearbox - Left |
|
Note-E
|
|
|
2 |
|
|
|
Note-C
|
|
|
2 |
|
|
|
Note-D
|
|
|
3 |
|
Motor Assembly - Right (Before 10/29/01) |
|
|
|
|
3 |
|
Motor Assembly - Left (Before 10/29/01) |
|
|
|
|
3 |
|
Motor Assembly - Right (After 10/28/01) |
|
|
|
|
3 |
|
Motor Assembly - Left (After 10/28/01) |
|
|
|
|
4 |
|
Brake Repair Kit - Right |
|
Note-H
|
|
|
4 |
|
Brake Repair Kit - Left |
|
Note-H
|
|
|
5 |
|
Screw, Socket Pan Head (8-32 x 1/4") |
|
See Item 5 |
|
|
6 |
|
Brake Cover with Screws (Before 10/29/01) |
|
|
|
|
6 |
|
Brake Cover (Black) with Screws (After 10/28/01) |
|
|
|
|
7 |
|
Brushes with Caps |
|
Note-G
|
|
|
8 |
|
Slotted Plate |
|
|
|
|
9 |
|
Plastic Tip (Before 10/29/01) |
|
|
|
|
9 |
|
Plastic Tip (After 10/28/01) |
|
|
|
|
10 |
|
Screw, SHC (1/4-20 x 1-1/8") |
|
Note-E
|
|
|
10. |
|
Screw, SHC (M6 x 1 x 20MM) |
|
Note-E
|
|
|
11 |
|
Motor and Gearbox - Right (Before 10/29/01) |
|
|
|
|
11 |
|
Motor and Gearbox - Left (Before 10/29/01) |
|
Note-F
|
|
|
11 |
|
Motor and Gearbox - Right (After 10/28/01) |
|
|
|
|
11 |
|
Motor and Gearbox - Left After 10/28/01 |
|
|
|
|
12 |
|
Wheel with Foam Fill (12-1/2) with Locking Tab |
|
Note-A
|
|
|
12 |
|
Wheel, Pneumatic (12-1/2") with Locking Tab |
|
Note-A
|
|
|
13 |
|
Tire (12-1/2 x 2-1/4") |
|
|
|
|
14 |
|
Flat Tire Insert |
|
Note-B
|
|
|
15 |
|
Tube (12-1/2 x 2-1/4") |
|
|
|
|
16 |
|
Key |
|
|
|
|
17 |
|
Washer (21/64 x 53/64 x 7/64") |
|
|
|
|
18 |
|
Washer, Locking Tab (Pair) |
|
|
|
|
19 |
|
Screw, Hex Head (M8 x 20MM) (Pkg. of 25) |
|
|
|
|
20 |
|
Shroud Cover - Black, Drive Wheel |
|
|
|
|
21 |
|
Screw, Socket Head (M6 x 15MM) |
|
|
|
|
22 |
|
Screw, Socket Head (M6 x 35MM) |
|
|
|
|
23 |
|
Washer, Star (1/4") |
|
|
|
