Front Riggings - Footrest Extension Tubes

Print this page

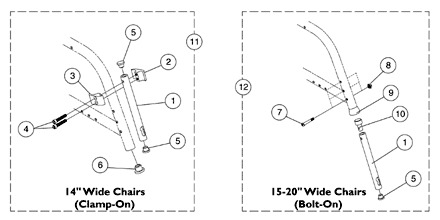

Footrest Extension Tubes

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1069004	NLA - Tube, Footrest Extension - Right	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1069003	NLA - Tube, Footrest Extension - Left	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1069006	NLA - Tube, Footrest Extension - Right	1	1	N/A	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1069005	NLA - Tube, Footrest Extension - Left	1	1	N/A	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1043712	Clamp, Half, Threaded	1	1	$14.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1043711	Clamp, Half, Non-Threaded	1	1	$14.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1027268	Screw, Allen Head (1/4-20 x 1")	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1068500	NLA - Plug Button, Black (3/4")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1056328	Plug Button, Black (1")	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1059284	NLA - Screw, Socket Button Head (1/4-28 x 1-1/4")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1025765	Locknut (1/4-28)	1	1	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1026124	Collar, Anti-Rattle	1	1	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1068502	NLA - Plug, Extension Tube	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1068982	NLA - Footrest Extension Tube Assembly (Pair)	2	1	N/A	D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1068929	NLA - Footrest Extension Tube Assembly (Pair)	2	1	N/A	E	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1068930	NLA - Footrest Extension Tube Assembly (Pair)	2	1	N/A	F	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1013870	NLA - Anti-Rattle (1")	1	2	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1024786	Bushing, Pivot	1	2	$7.20	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Not Shown
B	14-16" Knee to Heel Height
C	16-18" Knee to Heel Height
D	14" Knee to Heel
E	15-16" Knee to Heel
F	16-18" Knee to Heel

Catalog Literature

Parts Books for MVP® (Before 10/16/01) Xtra™ (Before 9/1/04) Jr Style Wheelchairs
