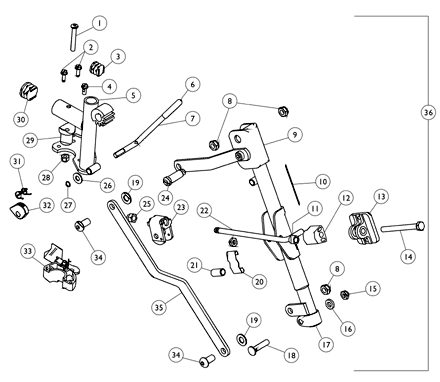

Front Riggings - Articulating Legrest Support - ATL4A
Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
---|---|---|---|---|---|---|---|
2 | 1025451 | Screw, Slotted Hex Washer Head (#10-32 x 5/8") | 1 | 2 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
3 | 1027097 | Plug Button, Black (3/4") | 1 | 1 |
$7.50 |
Create/add to WishlistCreate/add to Wishlist |
|
4 | 1017423 | Screw, Slotted Hex Washer Head w/ Patch (#10-32 x 1/2") | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
5 | 1082539 | NLA - Tube, Legrest Support, Articulating, Sector, Chrome - Left | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
5 | 1082538 | NLA - Tube, Legrest Support, Articulating, Sector, Chrome - Right | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
6 | 1040060 | Tip, Plastic, Black | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
7 | 1037126 | Handle, Release | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
8 | 40363X000 | Hex Nut (3/8"-16) | 1 | 3 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
9 | 1022878 | NLA - Tube, Support and Drive Link, Chrome - Left | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
9 | 1022877 | NLA - Tube, Support and Drive Link, Chrome - Right | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
10 | 1024911 | NLA - Decal, Smartleg | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
11 | 47330X003 | Spacer (5/16 x 1/2 x 3/8") | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
12 | 1025133 | Spacer, Legrest Pad, Black | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
13 | 04526X019 | Plate, Legrest Pad | 1 | 1 |
$9.00 |
Create/add to WishlistCreate/add to Wishlist |
|
14 | 1014807 | Screw, Hex Head (5/16-24 x 3-1/4") | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
15 | 60264X001 | Locknut (5/16-24) | 1 | 2 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
16 | 1027377 | Washer (#20) | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
17 | 1022848 | Tube, Slide, Articulating, Chrome - Right | 1 | 1 |
$30.00 |
Create/add to WishlistCreate/add to Wishlist |
|
17 | 1022849 | Tube, Slide, Articulating, Chrome - Left | 1 | 1 |
$31.00 |
Create/add to WishlistCreate/add to Wishlist |
|
18 | 11232X009 | Bolt, Lug (5/16-24 x 1-3/8") | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
19 | 1049527 | Washer, Nylon (3/8 x 3/4 x 1/16") | 1 | 2 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
20 | 48823X008 | Spring, Leaf | 1 | 1 |
$9.00 |
Create/add to WishlistCreate/add to Wishlist |
|
21 | 47328X003 | Bushing, Pivot (5/16 x 7/16 x 7/8") | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
22 | 42326X004 | Bar, Ratchet - Right/Left | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
23 | 04528X002 | Bracket, Release, Black | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
24 | 1022854 | NLA - Screw, Shoulder Slotted Head (1/2 x 1-1/8", 3/8-16) | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
25 | 1026114 | Screw, Phillips Pan Head (#10-32 x 1/2") | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
26 | 1013519 | Washer, Nylon (5/16 x 11/16 x 1/16") | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
27 | 1037485 | Spring, Release | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
28 | 1025195 | Locknut (1/4-20) | 1 | 1 |
$9.00 |
Create/add to WishlistCreate/add to Wishlist |
|
29 | 1017148 | Pivot, Footrest | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
30 | 1029501 | Plug Button, Black (1") | 1 | 1 |
$7.20 |
Create/add to WishlistCreate/add to Wishlist |
|
32 | 1037125 | Cam, Legrest | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
33 | 1025454 | Housing, Latch - Right | 1 | 1 |
$19.00 |
Create/add to WishlistCreate/add to Wishlist |
|
33 | 1025455 | Housing, Latch - Left | 1 | 1 |
$19.00 |
Create/add to WishlistCreate/add to Wishlist |
|
34 | 1022866 | NLA - Screw, Socket Button Head (3/8-16 x 3/4") | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
35 | 1022846 | NLA - Bar, Link, Black | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
36 | 1082540 | Articulating Legrest Support Assembly, Sector, Chrome - Right | 1 | 1 |
$116.00 |
A |
Create/add to WishlistCreate/add to Wishlist |
36 | 1082541 | Articulating Legrest Support Assembly, Sector, Chrome - Left | 1 | 1 |
$116.00 |
A |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
Note Code | Definition |
---|---|
A | Includes items 1-35 |
