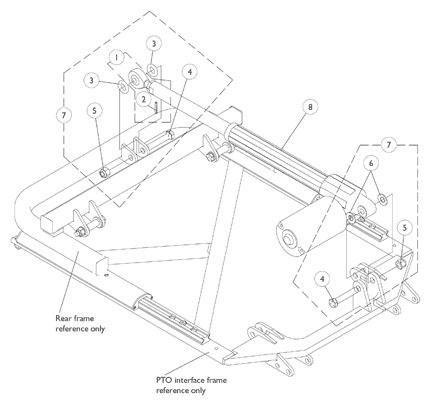

Actuator Motor & Mounting Hardware
Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
---|---|---|---|---|---|---|---|
2 | 1028848 | NLA - Pin, Roll (1/8" x 7/8") | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
3 | 0056000 | NLA - O-Ring (1/2 x 7/8 x 3/16") | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
4 | 0054606 | NLA - Screw, Hex Head (3/8-16 x 2") | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
5 | 0054106 | NLA - Locknut, High Profile (3/8-16) | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
6 | 0053900 | NLA - Washer, Nylon (3/8 x 13/16 x 1/16") | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
7 | 1119247 | NLA - Actuator Motor Mounting Hardware | 1 | 1 | N/A | A |
Create/add to WishlistCreate/add to Wishlist |
8 |
1154068
|
NLA - Kit, Actuator Motor, 6-1/2" Stroke | 1 | 1 | B |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
Note Code | Definition |
---|---|
A | Includes items 3-6 |
B | Includes item 1, Actuator Motor & Instruction Sheet |
