Frame Hardware - All MVP/Style & Xtra/Jr. (Built Before 4/03)

Print this page

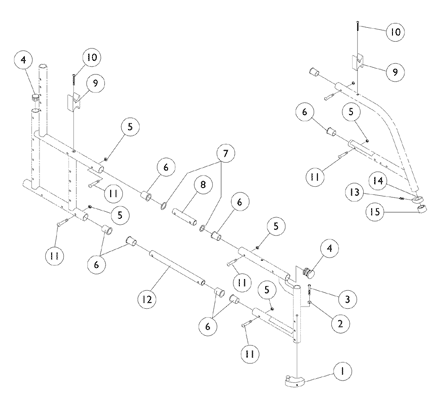

Frame Hardware - All MVP/Style and Xtra/Jr. Built Before 4/03

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1054571	Kit, Sector Block - Right	1	1	$19.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1054572	Kit, Sector Block - Left	1	1	$19.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1026907	Washer (1/4 x 1/2 x 1/16")	1	1	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1052957	Screw, Hex Head w/ Patch (1/4-20 x 2")	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1056328	Plug Button, Black (1")	1	2	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1065362	Locknut (1/4-28)	1	8	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1024786	Bushing, Pivot	1	6	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1026888	Washer, Nylon (3/4 x 1 x 1/32")	1	2	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1024787	NLA - Tube, Insert, Upper	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1007541	Clamp, Seat	1	2	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1025703	NLA - Screw, Phillips Oval Head (#10-32 x 1")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1055309	Screw, Socket Button Head (1/4-28 x 1-1/4")	1	4	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1024788	Tube, Insert, Lower	1	1	$14.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1026911	NLA - Screw, Socket Set Cone Point (1/4-20 x 1/2")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1024749	Clamp	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	15680X013	Anti-Rattle (1")	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes items 2 and 3.

Catalog Literature

Parts Books for MVP® (Before 10/16/01) Xtra™ (Before 9/1/04) Jr Style Wheelchairs
