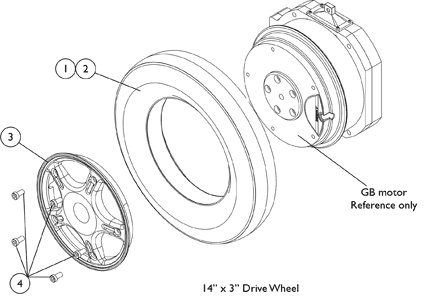

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1118273	Tire, Pneumatic with Instruction Sheet, Grey (14" x 3")	1	1	$115.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1118274	Kit, Tire w/ Foam Fill Insert and Instruction Sheet, Grey (14" x 3")	1	1	$217.00	B ,E ,E1	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1141342	Tire w/ Foam Fill Insert, Grey (14" x 3")	1	1	$161.00	C ,D ,E ,E1	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1118275	Kit, Inner Tube w/ Instruction Sheet, Black (14 x 3")	1	1	$20.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1116701	Kit, Rim 8" w/ Instruction Sheet (For 14 x 3" Wheel)	1	1	$100.00	E ,E1	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1113320	Screw, Socket Head (M8 x 1.25 x 16mm)	1	5	$10.00	E ,E1	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1153683	Screw, Socket Head (M8 x 1.25 x 25MM)	1	3	$10.00	A ,E1	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1114830	NLA - Instruction Sheet, Rim and Tire Replacement	1	1	N/A	A ,F	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Note Code	Definition
A	Not Shown
B	Before 12/19/05. Contains a black colored high density flat free foam material
C	After 12/18/05. Contains a green colored low density flat free foam material that provides a softer ride. A customers chair must contain a matched color set of foam filled inserts.
D	Instruction Sheet part # 1114830 must be ordered when part # 1141342 is requested
E	When ordering a new flat free tire, rim or 16MM wheel mounting screws item #4, it is recommended to order 3 ea. of part #1153683 25MM screws as well.
E1	The 25MM screws are inserted a 1/4" in every other mounting hole on the motor to compress the flat free and make it easier to install the 5 shorter 16MM screws item #4.
F	Item is no longer available from the Invacare Service Parts Department. Refer to the Invacare Website under "Product Literature Search". Enter the part number in the "Keywords" field and download a free PDF version copy.
