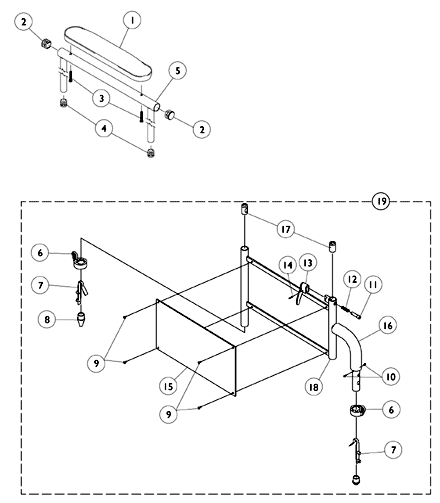

Arms - Adjustable Height
| Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
|---|---|---|---|---|---|---|---|
| 1 | 8881053570 | Kit, Arm Pad w/ Screws, Desk Length (Pair) | 2 | 1 |
$53.00 |
A |
Create/add to WishlistCreate/add to Wishlist |
| 1 | 8881053571 | Kit, Arm Pad w/ Screws, Full Length (Pair) | 2 | 1 |
$53.00 |
A |
Create/add to WishlistCreate/add to Wishlist |
| 2 | 1027095 | Plug Button, Black (7/8") | 1 | 2 |
$9.20 |
Create/add to WishlistCreate/add to Wishlist |
|
| 3 | 1111714 | Package, Screw Phillips Pan Head (#10-32 x 1-1/8") | 2 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 4 | 1035614 | Plug Button, Black (5/8") | 1 | 2 |
$9.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 5 | 1038470 | Arm Tube Assembly, Conventional w/ Plug Buttons, Desk Length, Black - Right/Left | 1 | 1 |
$45.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 5 | 1068576 | Arm Tube Assembly, Conventional w/ Plug Buttons, Full Length, Black - Right/Left | 1 | 1 |
$45.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 5 |
1038462
|
Armrest Assembly, Space Saver Desk Length, Black - Right | 1 | 1 |
$44.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 5 |
1038463
|
Armrest Assembly, Space Saver Desk Length, Black - Left | 1 | 1 |
$44.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 5 |
1038466
|
Armrest Assembly, Space Saver Full Length, Black - Right | 1 | 1 |
$44.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 5 |
1038467
|
Armrest Assembly, Space Saver Full Length, Black - Left | 1 | 1 |
$44.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 6 | 1015450 | Handle, Quad Release | 1 | 2 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 7 | 1018225 | Spring, Torsion with Button Lock | 1 | 2 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 8 | 1020060 | Plug, Arm | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 9 | 1028645 | Rivet | 1 | 4 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 10 | 1025729 | Screw, Phillips Pan Head Tap (#8-32 x 3/8") | 1 | 2 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 11 | 47471X068 | Pin, Locking | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 12 | 47471X074 | Spring, Arm Lock | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 13 | 1090768 | Kit, Lock Handle w/Rivets (Pair) | 2 | 1 |
$16.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 14 | 1079151 | NLA - Pin, Roll (5/64 x 5/8") | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 15 | 1064129 | Guard, Clothing | 1 | 1 |
$30.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 16 | 1037719 | Grip, Hand, Foam (6 1/2") | 1 | 1 |
Create/add to WishlistCreate/add to Wishlist |
||
| 17 | 1036150 | Anti-Rattle | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 18 | 1032303 | NLA - Arm Base Assembly, w/o Hardware, Black | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 19 | 1036783 | Arm Base Assembly, Conventional Adjustable Height - Right | 1 | 1 |
$136.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 19 | 1036784 | Arm Base Assembly, Conventional Adjustable Height - Left | 1 | 1 |
$136.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 19 | 1037779 | NLA - Arm Base, Space-Saver, Black - Right | 1 | 1 | N/A | B ,D |
Create/add to WishlistCreate/add to Wishlist |
| 19 | 1037780 | NLA - Arm Base, Space-Saver, Black - Left | 1 | 1 | N/A | B ,D |
Create/add to WishlistCreate/add to Wishlist |
| 19 | 1048323 | NLA - Arm Base Assembly, Space Saver - Right | 1 | 1 | N/A | C |
Create/add to WishlistCreate/add to Wishlist |
| 19 | 1048324 | NLA - Arm Base Assembly, Space Saver - Left | 1 | 1 | N/A | C |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
| Note Code | Definition |
|---|---|
| A | Specify U67 upholstery color when ordering. |
| B | MVP, Xtra chairs |
| C | Style chairs |
| D | Arm Bases are for 18-21" deep chairs. For 22" deep chairs, arm bases must be ordered through specials. |
