Casters - Headtubes & Hardware - Xtra/Jr. (Built After 3/03)

Print this page

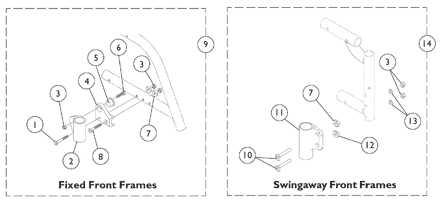

Caster Headtubes and Hardware - Xtra/Jr. Built After 3/03

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1055349	Screw, Hex Head (1/4-28 x 2")	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1076369	NLA - Headtube, Caster, Black - Right	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1076370	NLA - Headtube, Caster, Black - Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1055366	Locknut (1/4-28)	1	4	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1040759	NLA - Bracket, Headtube Adjustment, Black - Right	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1040760	NLA - Bracket, Headtube Adjustment, Black - Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1040766	Cam, Headtube Adjustment	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1055296	NLA - Screw, Hex Head (1/4-28 x 1")	1	2	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1055347	NLA - Screw, Hex Head (1/4-28 x 1-1/2")	1	2	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1026099	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1055332	NLA - Screw, Socket Flat Head (1/4 -28 x 1-3/4")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1046147	NLA - Kit, Caster Headtubes w/ Hardware (Pair)	1	1	N/A	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1113501	Screw, Eccentric (1/4-28 x 1-11/16")	1	4	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1113576	Headtube, Caster, Black - Right	1	1	$74.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1113577	Headtube, Caster, Black - Left	1	1	$74.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1009861	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1026907	Washer (1/4 x 1/2 x 1/16")	1	4	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1114704	NLA - Kit, Caster Headtubes w/ Hardware (Pair)	1	1	N/A	D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Chairs without Transport Option
B	Chairs with Transport Option
C	Fixed Front Frames. Includes items 1-8.
D	Swingaway Front Frames. Includes items 3,7, & 10-13.

Catalog Literature

Parts Books for MVP® (Before 10/16/01) Xtra™ (Before 9/1/04) Jr Style Wheelchairs
