Accessories - Oxygen Holder Assembly Kit - Captain Seat (After 4/14/03)

Print this page

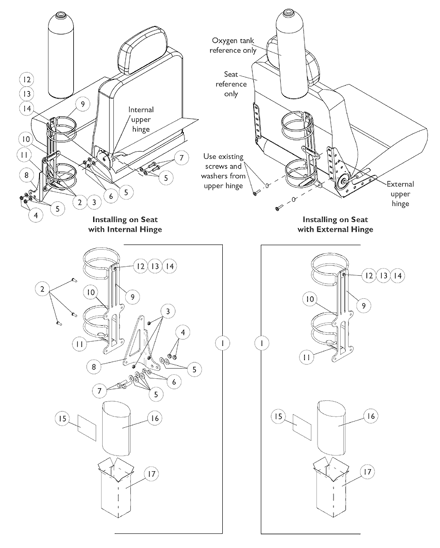

Oxygen Holder Assembly Kit

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1116952	NLA - Oxygen Holder Assembly Kit	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1116956	Oxygen Holder Assembly(D or E Tanks)	1	1	$177.00	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1055304	Screw, Socket Button Head (1/4-28 x 5/8")	1	3	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1025765	Locknut (1/4-28)	1	3	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1028486	Locknut, Low Profile (3/8-16)	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1118889	NLA - Washer, Steel (3/8 x 7/8 x 1/16")	1	6	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1116954	NLA - Nut, Hex (3/8-16)	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1118888	NLA - Screw, Hex Head (3/8-16 x 1-1/4")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1116953	NLA - Bracket, Oxygen Holder, Black	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1116948	Holder, Oxygen	1	1	$177.00	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1080866	Decal, Oxygen Warning - English	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1116950	NLA - Pad, Non-Skid	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1116945	Spring, Oxygen Holder	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1072319	NLA - Screw, Socket Button Head (#10-32 x 1/2")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1025735	Locknut (#10-32)	1	1	$3.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	1116957	NLA - Instruction Sheet, Oxygen Holder	1	1	N/A	D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	1021866	NLA - Bag, Poly (26" L x 15" W)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
17	1063960	Carton	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	For seats with an INTERNAL (Non-Visible) hinge assembly and includes items 2-17
B	For seats with an EXTERNAL (Visible) hinge assembly and includes items 9-17
C	Includes items 10-14
D	Item is no longer available from the Invacare Service Parts Department. Refer to the Invacare Website under "Product Literature Search". Enter the part number in the "Keywords" field and download a free PDF version copy.

Catalog Literature

Parts Books for Arrow® FWD
