Upholstery - Back - Non-Recliner - Nylon

Print this page

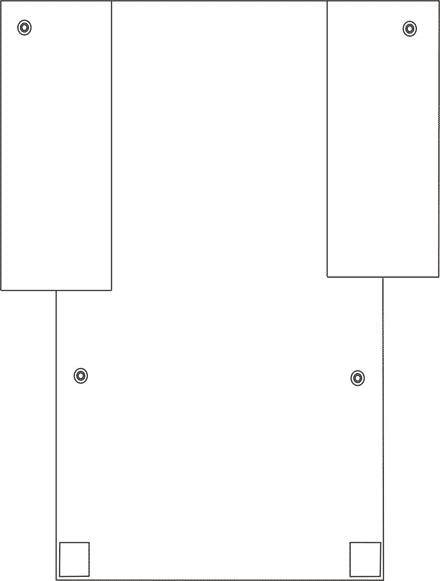

Back Upholstery - Non-Recliner - Nylon

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1026298

Package, Screw with Washer (#10 x 7/8") (Pair)

2

1

$10.00

A

Create/add to Wishlist

Create/add to Wishlist

See Chart

Added to Cart

Width		16"-17" High		18" - 19" High		20" High		21" - 22" High		23" - 24" High
14" W		1045178		1045210 MSRP: $124.00		1068950		1045162		1054532
15" W		1045179		1045211		1068951		1045163		1054533
16" W		1045180 MSRP: $130.00		1045212 MSRP: $161.00		1068952 MSRP: $95.00		1045164		1054534
17" W		1045181 MSRP: $161.00		1045213 MSRP: $108.00		1068953		1045165		1054535
18" W		1045182 MSRP: $130.00		1045214 MSRP: $161.00		1068954		1045166 MSRP: $113.00		1054536
19" W		1045183 MSRP: $161.00		1045215		1068955		1045167		1054537
20" W		1045184 MSRP: $161.00		1045216 MSRP: $115.00		1068956 MSRP: $95.00		1045168		1054538 MSRP: $125.00
21" W		1045185		1045217		1068957		1045169		1054539
22" W		1045186 MSRP: $161.00		1045218 MSRP: $117.00		1068958		1045170		1054540
23" W		1045187- NLA		1045219- NLA		1068959- NLA		1045171- NLA		1054541- NLA
24" W		1045188- NLA		1045220- NLA		1068960- NLA		1045172- NLA		1054542- NLA

Create/add to Wishlist

Create/add to Wishlist

Dual Liners - Nylon

N/A

N/A

N/A

A

Create/add to Wishlist

Create/add to Wishlist

See Chart

Added to Cart

Width		12"-13" High		14"-15" High		16"-17" High		18"-19" High		20" High		21"-22" High		23"-24" High
12" W		1045221- NLA		1045222- NLA		1045257- NLA		1045258- NLA		N/A		N/A		N/A
13" W		1045223- NLA		1045224- NLA		1045259- NLA		1045260- NLA		N/A		N/A		N/A
14" W		1049939- NLA		1049942		1045173 MSRP: $130.00		1045205 MSRP: $118.00		1068945		1045157		1054527- NLA
15" W		1049940- NLA		1049943- NLA		1045174		1045206 MSRP: $118.00		1068946		1045158		1054528- NLA
16" W		1049941- NLA		1045175 MSRP: $161.00		1045175 MSRP: $161.00		1045207 MSRP: $130.00		1068947		1045159 MSRP: $130.00		1054529
17" W		N/A		1049945 MSRP: $154.00		1045176 MSRP: $130.00		1045208 MSRP: $161.00		1068948		1045160		1054530
18" W		N/A		1049946		1045177 MSRP: $95.00		1045209 MSRP: $161.00		1068949 MSRP: $95.00		1045161		1054531 MSRP: $107.00

Create/add to Wishlist

Create/add to Wishlist

Single Liners

N/A

N/A

N/A

A

Create/add to Wishlist

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Not Shown

Catalog Literature

Parts Books for TDX®3 TDX®3 SE TDX®4 TDX®5
