Electronics - Tilt/ Recline Potentiometers and Hardware

Print this page

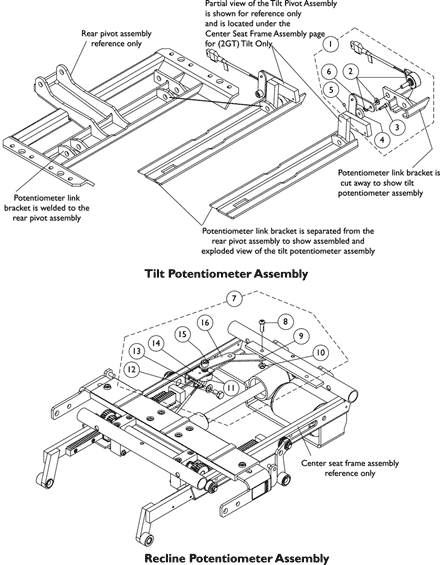

Tilt/Recline Potentiometers and Hardware

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1117258	NLA - Tilt Potentiometer Assembly	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1117256	NLA - Harness, Tilt Potentiometer with Nut and Washer	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1091871	NLA - Screw, Socket Head (#8-32 x 5/8")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1029454	NLA - Washer, Nylon (3/16 x 3/4 x 5/32")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1008438	Screw, Set Socket Cup Point (#8-32 x 3/16")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1087037	NLA - Linkage, Tilt Potentiometer	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1094264	NLA - Recline Potentiometer Assembly	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1091870	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1031884	NLA - Bushing, Black or Color Chairs (9/32 x 3/8 x 11/32")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1025195	Locknut (1/4-20)	1	1	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1079991	NLA - Recline Potentiometer w/ Harness, Nut and Washer	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1061922	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1025704	Washer, Flat (5/16 x 5/8 x 1/16")	1	1	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1115825	NLA - Bracket, Fixed Recline Potentiometer, Black	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	1008438	Screw, Set Socket Cup Point (#8-32 x 3/16")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	1094263	NLA - Linkage, Recline Potentiometer	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes items 2-6
B	Includes items 8-16

Catalog Literature

Parts Books for Tarsys® Tilt Only (2GT™) Recline Only (2GR™) Tilt and Recline (2GTR™)
