Amputee Axle Mounting Plates - Xtra and Jr.

Print this page

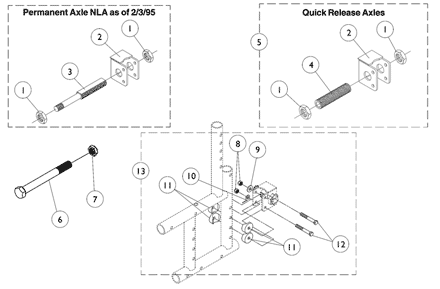

Amputee Axle Mounting Plates

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1025702	NLA - Hex Jam Nut (3/4-16)	1	2	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1044945	Nut, Hex (3/4-16)	1	2	$8.00	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1008677	NLA - Plate, Axle, Amputee	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1025760	NLA - Axle, Permanent (1/2-20 x 5")	1	1	N/A	C ,C1	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1026178	Bushing, Axle (2-1/2")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1027051	NLA - Amputee Axle Plate Assembly	2	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1049227	Screw, Hex Head (1/2-20 x 5-1/4")	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1025737	Locknut (1/2-20)	1	1	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1065362	Locknut (1/4-28)	1	2	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	20105X000	NLA - Washer, Flat (1/4 x 5/8 x 1/16")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1026903	NLA - Tab, Tie Down	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	40157X020	Spacer, Coved (1/4 x 1 x 9/16")	1	4	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1055349	Screw, Hex Head (1/4-28 x 2")	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1028249	NLA - Kit, Amputee Axle Plate Hardware	2	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Before 5/10/96
B	After 5/9/96
C	To order a replacement Amputee Permanent Axle Assembly on chairs manufactured before 2/3/95, order the following parts: Items: 5 (1 ea.), 6 (2 ea.), and 7 (2 ea.).
C1	For permanent axle applications, the permanent axle is used in place of the quick release axle and is inserted through the Axle Busing (item 4)

Catalog Literature

Parts Books for MVP® (Before 10/16/01) Xtra™ (Before 9/1/04) Jr Style Wheelchairs
