Cabinet and Base (Non Platinum 5 Models)

Print this page

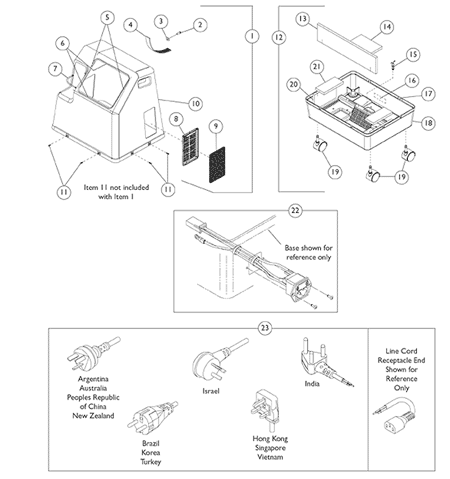

Cabinet and Base - Non Platinum 5 Models

Click to Enlarge

Assembly Part Notes

Note Code Definition
A Includes: (1) each Cable Tie, Cabinet Front Foam, (2) each Cabinet Side Foam and Items 2-10.
B Includes Items 13-21.
C Includes (2) each Briv Rivet.
D Not Shown.
E Labels are not available for the following: Australia, Peoples Republic of China, Hong Kong, India, Israel, Korea, New Zealand, Singapore and Vietnam.
F Standard equipment manufactured with full English label applied. Language specific Label Overlays used to customize equipment.
G Item no longer available, refer to Part #1110426.
H Item no longer available, refer to Part #1131308.
