Control Panel & PC Board - Platinum 5 Models

Print this page

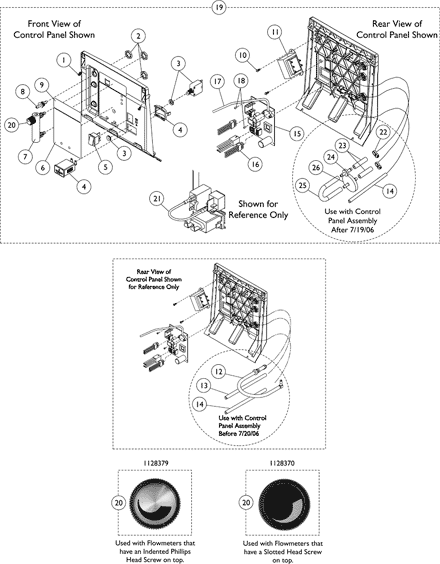

Control Panel and PC Board - Platinum 5 Models

Click to Enlarge

Assembly Part Notes

Note Code Definition
A Includes (2 each) Tubing, Check Valve, Elbow and Tie Wrap.
B Includes Item 17.
C Knob is black with silver "swish". Used on Flowmeters with a Slotted Head Screw on top.
D Knob is silver with black "swish". Used on Flowmeters with an Indented Phillips Head Screw on top.
E "After 7/19/06" the location of the HEPA Filter has changed. The HEPA Filter is now located inside the cabinet.
F For use with Control Panel Assembly "After 7/19/06."
G For use with Control Panel Assembly "Before 7/20/06."
H Individual item no longer available, refer to Transformer Kit Part #1105391 for replacement.
I Includes Transformer, Nuts and Insulator.
J No longer available as a service part in the field.
