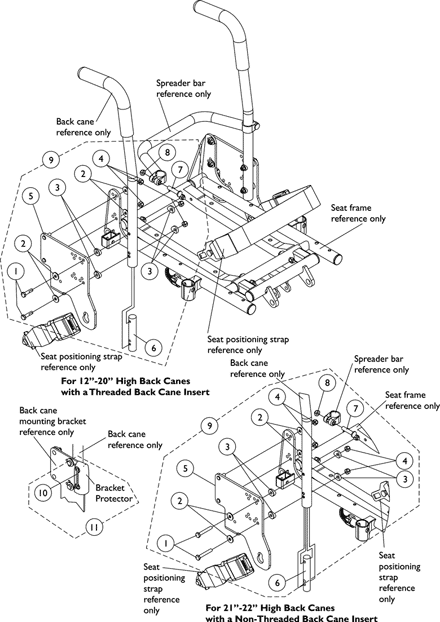

Canes - Back and Spreader Bar Mounting Hardware - ASBA - Before 10/27/04 (12-13" Seat Depths)
| Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes |
|---|
Assembly Part Notes
| Note Code | Definition |
|---|---|
| A | Prior to 7/9/04 new back mounting hardware must be ordered for 12-13" deep seats that use CJ brackets. The threaded insert was replaced with a non-threaded insert for back heights 20" and lower. |
| B | Item 7 and 8 used for back heights 20"-22" only |
| C | Includes items 1-6 |
| D | Includes items 1-8 |
| E | Not Shown |
| F | Includes (2) Cable Ties, (2) Bracket Protectors, and (1) Instruction Sheet. |
| G | Item is no longer available from the Invacare Service Parts Department. Refer to the Invacare Website under "Product Literature Search". Enter the part number in the "Keywords" field and download a free PDF version copy. |
