Seat and Mounting Hardware

Print this page

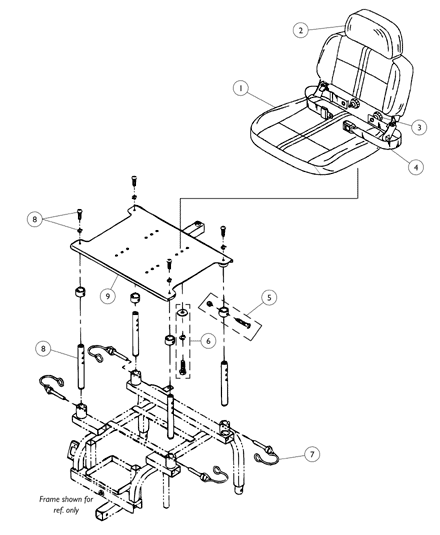

Seat Assembly and Mounting Hardware

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1099755	NLA - Seat with Headrest Pillow, Gray Cloth - Before 3/01/01	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1106210	NLA - Seat w/ Headrest Pillow, Vinyl, Grey - After 2/28/01	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1099756	NLA - Pillow, Headrest, Gray Cloth (Before 3/01/01)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1106211	NLA - Headrest, Vinyl (Gray) - Lynx LX3/ LX3 Plus and Panther LX4/ MX4	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1088768	NLA - Knob, Lower Arm Tightening	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	P715	Strap, Seat Positioning - All Models	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1099737	NLA - Hardware, Seat Adjusting Collar Includes: 4 ea. Collar, Seat Adjusting 4 ea. Screw, Phillips Pan Head (M6 x 1.0 x 40) 4 ea. Locknut (M6 x 1.0 x 1.0)	4	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1099758	NLA - Hardware, Seat Stand Mounting Includes: 4 ea. Washer (M8 x 22 x 2) 4 ea. Washer, Spring (M8 x 13) 4 ea. Screw, Hex Head Cap (M8 x 1.25 x 25)	4	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1099763	NLA - Connecting Pin Hardware, Seat	4	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1099740	NLA - Strut, Seat with Hardware Includes: 4 ea. Strut, Seat 4 ea. Washer, Spring (M8 x 13) 4 ea. Screw, Socket Head (M8 x 1.25 x 20)	4	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1099757	NLA - Stand, Seat	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Cloth seats are NLA. As a replacement, order the vinyl seat with headrest pillow part number 1106210.

Catalog Literature

Parts Books for Pronto® M6
