Motor & Gearbox Assembly

Print this page

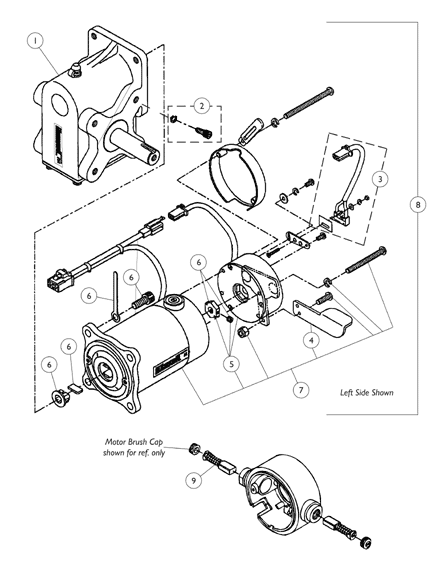

Motor and Gearbox Assembly

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1099727	NLA - Gearbox - Right	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1099726	NLA - Gearbox - Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1099728	NLA - Hardware, Gearbox Mounting Includes: 8 ea. Washer, Spring (M8 x 13) 8 ea. Screw, Socket Head (M8 x 1.25 x 20)	8	8	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1099733	NLA - Switch Assembly with Hardware Includes: 1 ea. Switch, 1 ea. Paper, Switch, 2 ea. Washer (2.2 x 5 x 0.5), 2 ea.Washer, Spring (2.1 x 4.3 x 0.7) 2 ea Nut (M2 x 0.4 x 6)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1099732	NLA - Handle, Free Wheel, Right	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1099731	NLA - Handle, Free Wheel, Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1099730	NLA - Brake, Motor with Axle	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1099725	NLA - Package, Hardware, Motor/ Gearbox Includes: 1 ea. Plate, Motor Cable Tie Down 4 ea. Screw, Socket Head (M8 x 1.25 x 20) 1 ea. Plate, Bushing 1 ea. Bushing 1 ea. Driving Axle, Disc Brake with Set Screw	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1099741	NLA - Motor/ Brake Assembly - Right	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1099729	NLA - Motor/ Brake Assembly - Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1099735	NLA - Motor/ Gearbox Assembly, Right	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1099734	NLA - Motor/ Gearbox Assembly, Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1099736	NLA - Brush, Motor (Pair)	2	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
