Battery Harness - Cables & Charger

Print this page

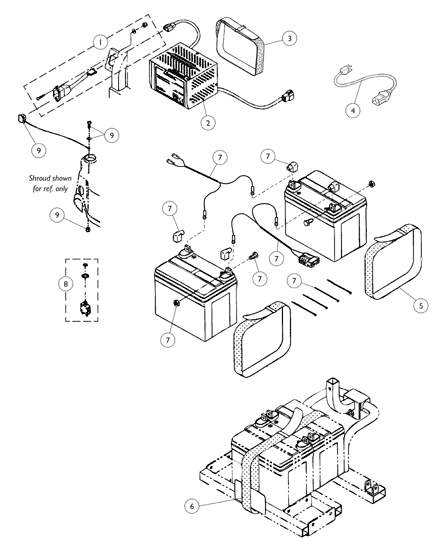

Battery Harness, Cables and Charge

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1099754	NLA - Charging Cable, On Board with Hardware (Lynx SX3/ LX3/ LX3 Plus and Panther MX4) Includes: (1) Charging Cable, (2) Screw, Phillips Pan Head (M3 x 0.5 x 16) 2 ea. Washer (3.2 x 10 x 0.8) 2 ea. Locknut (M3 x 0.5 x 6) 2 ea. Cable Tie 1 ea. Tube, PVC (19 x 20 x 260L)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1099753	NLA - Charger, Battery, On-Board	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1053161	NLA - Charger, Battery, 8 Amp, 115vac, Off Board Dual Mode Round Plug, Lester	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1099744	NLA - Strap, Fastening - On-Board Charger	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1088745	NLA - Cord, Charger, AC	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1088742	NLA - Strap, Carrying, Battery	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1099760	NLA - Strap, Fastening - Battery	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1099752	NLA - Harness, Power Connector, Circuit Breaker Cables and Hardware Includes: 1 ea. Harness Power Connector 2 ea. Cover, Battery Terminal (Red) 2 ea. Cover, Battery Terminal (Black) 1 ea. Cable, Circuit Breaker (Red) 1 ea. Cable, Circuit Breaker (Black) 1 ea. Tube, Snake (10 x 110L) 1 ea. Tube, Snake (10 x 95L) 4 ea. Screw, Hex Head Cap (M6 x 1.0 x 12) 4 ea. Hexnut (M6 x 1.0 x 10) 4 ea. Cable Tie	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1088748	NLA - Circuit Breaker (30 AMP) - Lynx SX3P/ SX3/ LX3/ LX3 Plus, Panther LX4 and Zoom-3	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1099772	NLA - Charger Cable Cover Assembly Includes: 1 ea. Cover, Charger Cable 1 ea. Screw, Phillips Pan Head (M4 x 0.7 x 12) 1 ea. Washer (M4 x 9 x 1) 1 ea. Locknut (M4 x 0.7 x 7)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	(On-Board) Battery Charger #1099753 is no longer available. Use the (Off Board) Charger part #1053161 as a replacement.
B	Use Battery Charger part number 1123249 as a replacement.

Catalog Literature

Parts Books for Pronto® M6
