Electronics - Quad Link 10/9/03 Thru 1/12/04 For MK5 DPJ Joystick

Print this page

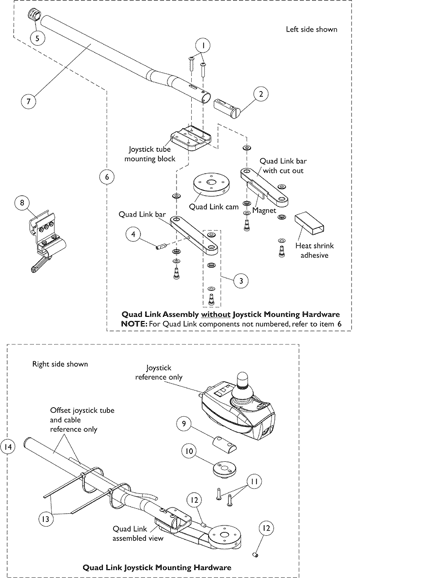

Quad Link Assembly For MK5 DPJ Joystick

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1025714	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1093063	Spacer, Joystick Tube, Black	1	1	$11.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1123005	NLA - Quad Link Hardware Consists Of: 4 each Screw, Socket Head Shoulder (1/4 x 1/4") 4 each Washer, Spring (1/4 x 1/2 x 1/32") 8 each Spacer, Flanged (1/4 x 9/16 x 1/8")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1123010	NLA - Screw, Socket Head Set w/ Patch (1/4-20 x 3/4")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1027095	Plug Button, Black (7/8")	1	1	$9.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1121120	NLA - Quad Link Assembly - Right	1	1	N/A	A ,C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1123004	NLA - Quad Link Assembly - Left	1	1	N/A	A ,C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1093506	NLA - Tube, Joystick Offset (1/2")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1093071	Clamp, Fixed Height Joystick Tube	1	1	$29.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1121100	NLA - Mount, Joystick Quad Link	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1121101	NLA - Mount, Joystick Spin	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1102546	NLA - Screw, Phillips Pan Head (#10-32 x 7/8")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1123010	NLA - Screw, Socket Head Set w/ Patch (1/4-20 x 3/4")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1095502	NLA - Package, Tie Wrap (11-1/2" L)	10	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1121113	NLA - Quad Link Joystick Mounting Hardware	1	1	N/A	B ,C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes items 1-5. When ordering a Quad Link Assembly for the first time, item 14 must be ordered as well. When replacing an existing Quad Link made before 10/9/03, items 6, 7, 8 and 14 must be ordered.
B	Includes items 9-13 and used for MK5 DPJ joystick.
C	No Longer available, see Quad Link dated after 1/12/04
