Wheels - Drive Wheels & Mounting Hardware (14" x 3")

Print this page

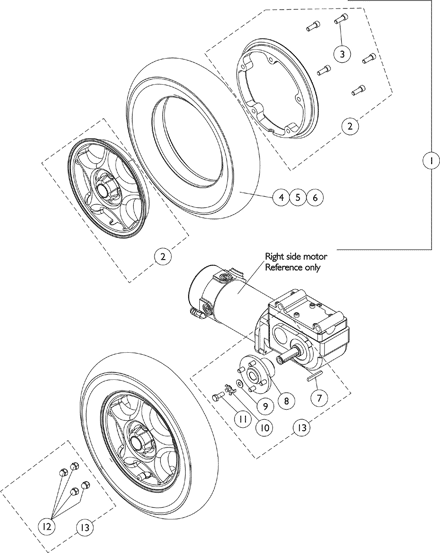

Wheels, Drive Wheels and Mounting Hardware (14

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1104438	Drive Wheel Assembly, Pneumatic, Grey Tire/Silver Rim (14 x 3")	1	1	$179.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1104437	Drive Wheel Assembly, Flat Free, Grey Tire/Silver Rim (14 x 3")	1	1	$280.00	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1141343	Drive Wheel Assembly, Flat Free, Grey Tire/Silver Rim (14 x 3")	1	1	$280.00	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1104882	NLA - Kit, 8" Rim w/ Hardware (14 x 3" Wheel)	1	1	N/A	D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1039652	Tire, Pneumatic, Grey (14" x 3")	1	1	$110.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1101754	Tire w/ Foam Fill Insert, Grey (14" x 3")	1	1	$161.00	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1141342	Tire w/ Foam Fill Insert, Grey (14" x 3")	1	1	$161.00	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1039651	Tube, Inner, Black (14 x 3")	1	1	$35.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1023264	Key (6mm x 6mm x 40mm)	1	1	$12.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1110639	Hub, Wheel	1	1	$33.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1079247	Washer, Flat (21/64 x 53/64 x 7/64")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1064179	Kit, Locking Tab Washer w/ Instruction Sheet (Pair)	2	1	$28.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1023260	Screw (M8 x 1.25 x 20mm)	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1100580	Nut, Beveled Hex (5/16-24)	1	4	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1115352	Kit, Drive Wheel Mounting Hardware (14" x 3")	1	1	$84.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes items 7-12
B	Before 12/19/05. Contains a black colored high density flat free foam material
C	After 12/18/05. Contains a green colored low density flat free foam material that provides a softer ride. A customers chair must contain a matched color set of foam filled inserts.
D	Sold complete. Includes the Rims and (5) ea. Socket Head Screws w/ Patch (5/16-18 x 7/8").

Catalog Literature

Parts Books for TDX®3 TDX®3 SE TDX®4 TDX®5
