Shrouds - Side & Attaching Hardware

Print this page

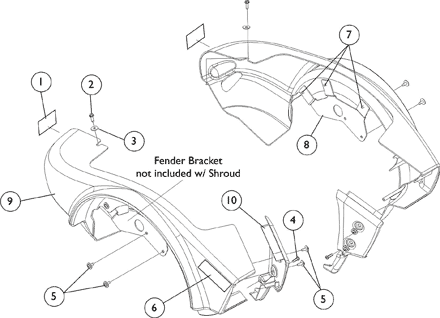

Side Shrouds and Attaching Hardware

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1104797	Decal, Drive/Push	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1025451	Screw, Slotted Hex Washer Head (#10-32 x 5/8")	1	2	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1070587	Washer, Flat (3/16 x 5/8 x 1/16")	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1114276	Screw, Phillips Pan Head (#8-16 x 5/8")	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1114308	Screw, Phillips Pan Head Tap (#10-32 x 1/2")	1	8	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1123224	Kit, Side Shroud Hardware	2	1		A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1123358	NLA - Decal, Model - Pronto M94	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1114308	Screw, Phillips Pan Head Tap (#10-32 x 1/2")	1	3	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1114304	NLA - Bracket, Fender Mounting, Black - Right	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1114305	NLA - Bracket, Fender Mounting, Black - Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1124373	Shroud, Side w/ Decals, Candy Red Pearl - Right	1	1	$269.00	B ,C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1124374	Shroud, Side w/ Decals, Candy Red Pearl - Left	1	1	$269.00	B ,C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1124375	Shroud, Side w/ Decals, Magic Black - Right	1	1	$269.00	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1124376	Shroud, Side w/ Decals, Magic Black - Left	1	1	$269.00	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1124377	Shroud, Side w/ Decals, Dark Blue Pearl - Right	1	1	$269.00	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1124378	Shroud, Side w/ Decals, Dark Blue Pearl - Left	1	1	$269.00	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1110696	Shroud, Front Inner - Right	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1110697	Shroud, Front Inner - Left	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Not Shown. Includes items 2-5.
B	Includes Decals, items 1 & 6.
C	Due to a supplier change it is recommended to order the right and left Side Shrouds to match in color shade for wheelchairs manufactured before 1/3/12.

Catalog Literature

Parts Books for Pronto® M94™ with SureStep®
