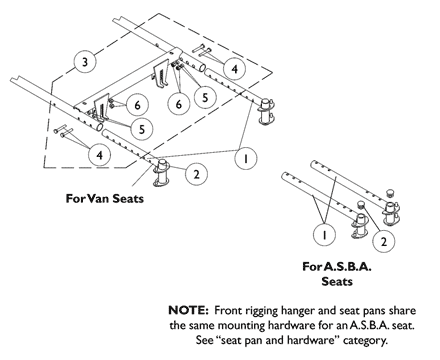

Front Riggings - Front Rigging Hanger Assembly

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1113026

Front Rigging Hanger Assembly w/ Plug Button, Hemi, Black - Right

$77.00

Create/add to Wishlist

1113027

Front Rigging Hanger Assembly w/ Plug Button, Hemi, Black - Left

$77.00

Create/add to Wishlist

1114766

Front Rigging Hanger Assembly w/ Plug Button, Pin Style, Hemi, Black - Right (12 - 21" D)

$116.00

Create/add to Wishlist

1114767

Front Rigging Hanger Assembly w/ Plug Button, Pin Style, Hemi, Black - Left (12 - 21" D)

$116.00

Create/add to Wishlist

1132339

NLA - Front Rigging Hanger Assembly w/ Plug Button, Pin Style, Hemi, Black - Right (22" D)

N/A

Create/add to Wishlist

1132340

NLA - Front Rigging Hanger Assembly w/ Plug Button, Pin Style, Hemi, Black - Left (22" D)

N/A

Create/add to Wishlist

1027097

Plug Button, Black (3/4")

$7.50

Create/add to Wishlist

1113045

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
4	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
5	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
6	Locknut (1/4-20)	1	4
4	Locknut (1/4-20)	1	4
5	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
6	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
4	Locknut (1/4-20)	1	4
5	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
6	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
4	Locknut (1/4-20)	1	4
5	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
6	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
5	Locknut (1/4-20)	1	4
6	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
7	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
17	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
16	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
18	Locknut (1/4-20)	1	4
19	NLA - Bag, Zip-Lip (4" L x 4" W)	1	1
16	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
17	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
18	Locknut (1/4-20)	1	4
19	NLA - Bag, Zip-Lip (4" L x 4" W)	1	1

Kit, Front Rigging Hanger Hardware

$37.00

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Used on chairs with Van seats. Includes Plug Button, item 2.
B	16-21" deep chairs with A.S.B.A. seats. Includes Plug Button, item 2.
C	Includes items 4-6.
D	22" deep chairs with A.S.B.A. seats. Includes Plug Button, item 2.

Catalog Literature

Parts Books for Pronto® M94™ with SureStep®
