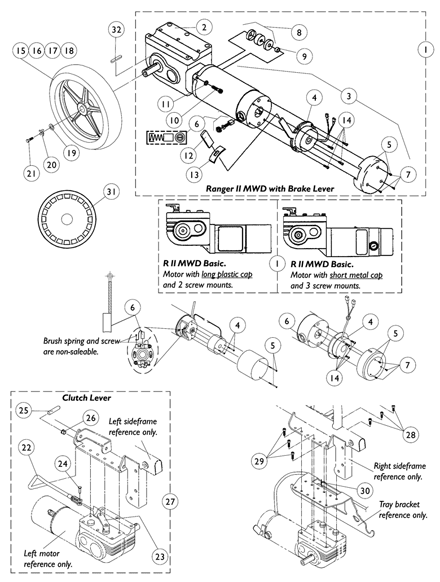

Motors - 2-Pole - Gearboxes & 12" Drive Wheel

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

See Chart

Added to Cart

Item Number	Description	Ranger II MWD and W.S.T. w/Brake Lever (Before 3/15/99) - Right	Ranger II MWD and W.S.T. w/Brake Lever (Before 3/15/99) - Left	Ranger II MWD Basic (Long Cap) - Right	Ranger II MWD Basic (Long Cap) - Left	Ranger II MWD Basic (Short Cap) - Right	Ranger II MWD Basic (Short Cap) - Left
1	Motor/ Gearbox	1057907- NLA	1057906- NLA	1071593- NLA	1071594- NLA	Note-B 1071595- NLA	Note-B 1071596- NLA
2	Gear Box	1056733- NLA	1056732- NLA	N/A	N/A	N/A	N/A
3	Motor Assembly	1070162- NLA	1070161- NLA	N/A	N/A	N/A	N/A
3	WARR RPLMT - Motor Assembly	1070162E- NLA	1070161E- NLA	N/A	N/A	N/A	N/A
4	Brake Repair Kit	1056735- NLA	1056734- NLA	1055872- NLA	1055872- NLA	1057827- NLA	1057827- NLA
5	Brake Cover w/Screws	1060996	1056736- NLA	Note-A 1038361- NLA	Note-A 1038361- NLA	1057826	1057826

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	Sold in pairs only
B	No Longer Available. Order the long cap Motor/ Gearbox Assembly part numbers 1071593 and 1071594 in pairs.

Drive Wheel, 2 Pole Motor and Gearboxes - (Items 1-5)

N/A

See Chart

Added to Cart

Item Number	Description	Ranger II MWD W.S.T. w/Brake Lever (Before 3/15/99)	Ranger II MWD Basic (Long Cap)	Ranger II MWD Basic (Short)
6	Brush w/Cap (Pair)	1064336- NLA	Note-H 561-005- NLA	1044044- NLA
7	Screw, Phillips Pan Head (4-40 x 1/4")	1050305- NLA	N/A	1050305- NLA
8		Note-F 5165204- NLA	N/A	N/A
8		Note-G 50000X007- NLA	N/A	N/A
9	Spacer (5/16 x 7/16 x 7/32")	Note-A 50000X341- NLA	N/A	N/A
10	Screw, Socket Head (1/4-20 x 1-1/8")	1043594 MSRP: $10.00	N/A	N/A
11	Lockwasher	10502X001- NLA	N/A	N/A
12	Tip, Protective	1006490 MSRP: $8.00	N/A	N/A
13	Slotted Plate	1057972- NLA	N/A	N/A
14	Screw (8-32 x 1/2")	1008498- NLA	N/A	N/A
15	Drive Wheel w/Foam Fill (12-1/2")	Note-B 1064177 MSRP: $185.00	Note-B 1064177 MSRP: $185.00	Note-B 1064177 MSRP: $185.00
15	Drive Wheel Pneumatic (12-1/2")	Note-B 1064178- NLA	Note-B 1064178- NLA	Note-B 1064178- NLA
16	Tire (12-1/2" x 2-1/4")	1011524 MSRP: $66.00	1011524 MSRP: $66.00	1011524 MSRP: $66.00
17	Flat Free Insert	Note-C 1073936- NLA	Note-C 1073936- NLA	Note-C 1073936- NLA
18	Tube (12-1/2" x 2-1/4")	1011525 MSRP: $17.00	1011525 MSRP: $17.00	1011525 MSRP: $17.00
19	Washer (11/32 x 13/16 x 1/8")	1023262- NLA	1023262- NLA	1023262- NLA
20	Washer Locking Tab (Pair)	1064179 MSRP: $28.00	1064179 MSRP: $28.00	1064179 MSRP: $28.00
21	Screw (Pkg) (M8 x 1-1/4 x 20MM)	7930322- NLA	7930322- NLA	7930322- NLA
22	Clutch Lever -Right	N/A	Note-E 1098712- NLA	Note-E 1098712- NLA
22	Clutch Lever -Left	N/A	Note-E 1098713- NLA	Note-E 1098713- NLA
23	Bracket, Clutch Lever	N/A	1071567- NLA	1071567- NLA
24	Pin, Clevis	N/A	1071568	1071568
25	Tip, Protective	N/A	1040060 MSRP: $8.00	1040060 MSRP: $8.00
26	Bushing, Snap	N/A	1071562- NLA	1071562- NLA
27	Clutch Lever Assembly -Right	N/A	1074114- NLA	1074114- NLA
27	Clutch Lever Assembly -Left	N/A	1074135- NLA	1074135- NLA
28	Screw, Socket Head (M6 x 20MM)	1071505 MSRP: $10.00	Note-D 1071505 MSRP: $10.00	Note-D 1071505 MSRP: $10.00
29	Screw, Socket Head (M6 x 35MM)	Note-D 1071504- NLA	1071504- NLA	1071504- NLA
30	Cable Tie (5-5/8" Long)	1021260 MSRP: $8.00	1021260 MSRP: $8.00	1021260 MSRP: $8.00
31	Shroud Cover, Black Drive Wheel	1074974- NLA	1074974- NLA	1074974- NLA
32	Key	1023264 MSRP: $12.00	1023264 MSRP: $12.00	1023264 MSRP: $12.00

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	Spacer not needed after 6/30/98
B	Drive Wheel comes with a locking tab and instruction sheet
C	As of 10/20/99 the "Solid" Flat Free Insert was replaced with a "Foam Fill" process. When a Flat Free Insert is requested, a complete wheel must be ordered
D	Weight Shifting Tilt takes a quantity of 2 per side for item 29
E	Short end of clutch lever was lengthened form 2" to 2-3/4" long as of 12/11/00. Replace in pairs for chairs made before 12/11/00
G	After 11/11/01 Coupling with Cup was resized from approximately 1" to 1-5/16" diameter and can be used as a direct replacement for part number 5165204
H	561-005 are internal brushes and do not use Caps.
F	Coupling with Cup for chairs manufactured before 11/12/01 - Use part # 50000X007 as a direct replacement part.

Drive Wheel, 2 Pole Motor and Gearboxes - (Items 6-32)

N/A

Catalog Literature

Parts Books for Storm Series® Ranger II™ MWD and Chairs for WSBT (Before 3/1/2000)
