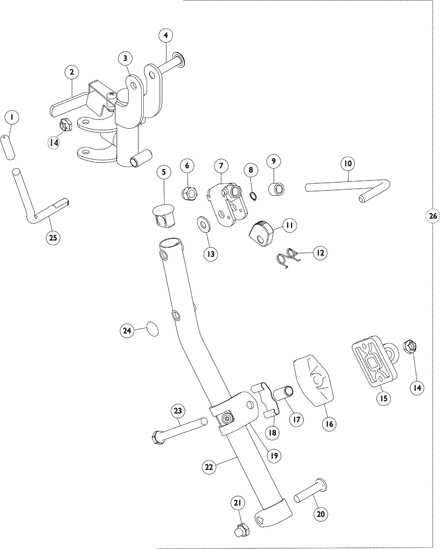

Front Riggings - Legrest Supports - TH94

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1040060	Tip, Plastic, Black	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1110178	Handle, Release, Black - Right	1	1	$10.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1110179	Handle, Release, Black - Left	1	1	$9.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1031235	NLA - Handle, Release, Chrome - Right	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1031236	NLA - Handle, Release, Chrome - Left	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1087698	NLA - Handle, Release, Chrome - Right	1	1	N/A	D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1087699	NLA - Handle, Release, Chrome - Left	1	1	N/A	D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1124215	Legrest Support Tube Assembly, Hemi, Black - Right	1	1		A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1124216	Legrest Support Tube Assembly, Hemi, Black - Left	1	1	$116.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1031356	NLA - Legrest Support Tube Assembly, Hemi, Chrome - Right	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1031357	NLA - Legrest Support Tube Assembly, Hemi, Chrome - Left	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1030948	Screw, Slotted Truss Head (5/16-24 x 1-1/2")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1095433	Plug Button, Black (7/8")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	10261X000	Nut, Acorn (5/16-24)	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1110308	Bracket, Release, Black	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1040831	Ring, Snap	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	47330X003	Spacer (5/16 x 1/2 x 3/8")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	42326X001	Bar, Ratchet	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1037125	Cam, Legrest	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1037485	Spring, Release	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1013519	Washer, Nylon (5/16 x 11/16 x 1/16")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	60264X001	Locknut (5/16-24)	1	2	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	04526X019	Plate, Legrest Pad	1	1	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	1091220	Spacer, Legrest	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
17	47328X003	Bushing, Pivot (5/16 x 7/16 x 7/8")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
18	48823X008	Spring, Leaf	1	1	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
19	1110207	Bracket, Calf Pad Mounting, Black	1	1		A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
19	1110208	NLA - Bracket, Calf Pad Mounting, Chrome	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
20	1026030	Bolt, Lug (5/16-24 x 1-3/8")	1	1	$8.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
20	11232X009	Bolt, Lug (5/16-24 x 1-3/8")	1	1	$10.00	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
21	1107321	Nut, Low Cap (5/16"-24)	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
22	1119206	NLA - Tube, Elevating Support, Black - Right	1	1	N/A	A ,E	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
22	1119207	NLA - Tube, Elevating Support, Black - Left	1	1	N/A	A ,E	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
22	1095434	NLA - Tube, Support, Chrome - Right	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
22	1095435	NLA - Tube, Support, Chrome - Left	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
23	1014807	Screw, Hex Head (5/16-24 x 3-1/4")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
24	1096773	Nut, Push Dome (5/16")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
25	1037126	Handle, Release	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
26	1124217	Legrest Support Assembly, Hemi, Black - Right	1	1	$116.00	A ,C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
26	1124218	Legrest Support Assembly, Hemi, Black - Left	1	1	$116.00	A ,C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
26	1124219	Legrest Support Assembly, Hemi, Black - Right	1	1		A ,C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
26	1124220	Legrest Support Assembly, Hemi, Black - Left	1	1		A ,C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Black
B	Chrome
C	Includes items 1 thru 24.
D	Not Shown. Order this item when ordering chair with Cyclical Drive only.
E	No longer available. See item 26 part #1124217 or 1124218 as replacements.

Catalog Literature

Parts Books for 9000SL 9000XT 9000XDT 9000XT Recliner
