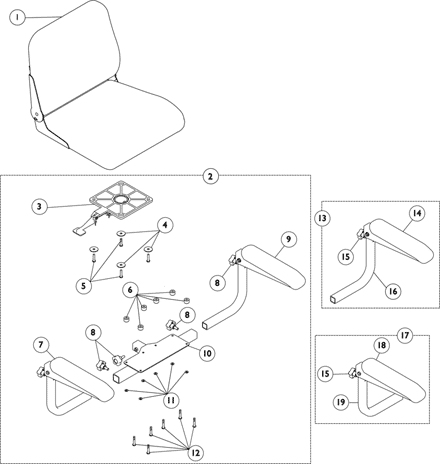

Seat and Arms - 16"

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1117008

NLA - Seat Assembly, Grey (16" W)

N/A

Create/add to Wishlist

1116977

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	NLA - Pivot, Seat	1	1
4	Washer, Steel (5/16 x 1-1/4 x 1/16")	1	4
5	NLA - Screw, Hex Head w/Patch (1/4-20 x 1-1/8")	1	4
6	NLA - Bushing (1/4 x 3/4 x 1/2")	1	6
7	NLA - Arm Assembly, Flip-Up, Black - Right	1	1
8	Knob, Adjustment, Black (5/16-18 x 3/4")	1	3
9	NLA - Arm Assembly, Flip-Up, Black - Left	1	1
10	NLA - Bracket, Arm Support	1	1
11	Washer (1/4 x 1/2 x 1/16")	1	6
12	NLA - Screw, Hex Head w/Patch (1/4-20 x 1-3/8")	1	6

NLA - Kit, Arm Assembly with Seat Pivot (16" Wide Seat)

N/A

C ,D

Create/add to Wishlist

1070553

NLA - Screw, Phillips Pan Head (#10-32 x 5/8")

N/A

A ,B

Create/add to Wishlist

1114228

NLA - Arm Assembly, Flip-Up, Black - Left

N/A

Create/add to Wishlist

1137221

NLA - Arm Assembly, Flip-Up, Black - Left

N/A

Create/add to Wishlist

1116976

NLA - Arm Pad Assembly, Desk Length with Hardware - Left

N/A

Create/add to Wishlist

1114910

Knob, Adjustment, Black (5/16-18 x 3/4")

$9.00

Create/add to Wishlist

1116906

NLA - Tube, Lower Arm - Left

N/A

Create/add to Wishlist

1113647

Tube, Arm, Lower Adjustable Width, Black - Left

$53.00

Create/add to Wishlist

1114227

NLA - Arm Assembly, Flip-Up, Black - Right

N/A

Create/add to Wishlist

1137220

NLA - Arm Assembly, Flip-Up, Black - Right

N/A

Create/add to Wishlist

1116975

NLA - Arm Pad Assembly, Desk Length with Hardware - Right

N/A

Create/add to Wishlist

1116905

NLA - Tube, Lower Arm - Right

N/A

Create/add to Wishlist

1113646

Tube, Arm, Lower Adjustable Width, Black - Right

$53.00

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Not Shown.
B	Screws to attach Arm Pad.
C	Items 7 & 9, 13 & 17 Arm Assembly Includes: Items 14 & 18 (Arm Pads) and item 15 (Adjustment Knobs).
D	Includes: Items 2-12.
E	Due to style change, Arm Rests need to be replaced in pairs. Order 1 ea. of 1137221 Left and 1137220 Right

Catalog Literature

Parts Books for Invacare® 300 Invacare® 400 Scooter
