| Note Code |
Definition |
|
A |
On 2" Lower Chairs ONLY, the mounting bracket is used as a spacer to align the shroud when attaching to the chair. When using a 2" lower recliner, the screws are used to mount the bracket in a specific location prior to mounting the shroud. |
|
AA |
No longer available as a service part. Please use 1121086 as its replacement. |
|
B |
On 7/18/01, Lester 8 amp. battery charger was reinstated for service parts. |
|
B1 |
CTE charger introduced 4/1/04. Used on Gel Cell or AGM (Absorbed Glass Mat) batteries. For wet cell batteries refer to the Lester charger. |
|
B2 |
CTE charger looks exactly the same as Dynamic's charger except for the company name that is silk screened on the narrow side panel, where the charger plug is (hard wired) attached. Serial number starts with 04A00000001. |
|
C |
Not Shown |
|
D |

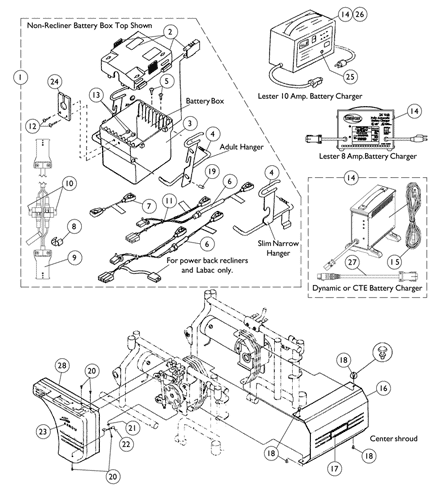

See Pictorial |
|
E |
Non-Recliners, 16" to 18" Wide with Sectional Back |
|
F |
Non-Recliners, 14" and 15" Wide with Sectional Back |
|
G |
Non-Recliners, 20" to 24" Wide with Permanent Uprights and Dual Crossbraces |
|
H |
2" Lower Manual Recliners, 14" Wide |
|
I |
2" Lower Manual Recliners, 16" Wide |
|
J |
2" Lower Manual Recliners, 18" Wide |
|
K |
Manual Recliners, 16" to 18" Wide |
|
L |
Manual Recliners, 14" and 15" Wide |
|
M |
2" Lower Manual Recliners, 14" Wide |
|
N |
2" Lower Manual Recliners, 16" Wide |
|
O |
2" Lower Manual Recliners, 18" Wide |
|
P |
Power Back Recliners, 16" to 18" Wide |
|
Q |
Labac, 16" to 18" Wide |
|
R |
Sectional Backs |
|
S |
Manual Recliners |
|
T |
Power Back Recliners |
|
U |
Part numbers 50000X025, 1019694, 1029687, 1010578, 1010701, 16348X005, and 47375X277 are available for individual sale or as part of "Miscellaneous Lid Hardware". |
|
V |
See page titled "Battery Box Hangers". |
|
W |
Labac |
|
X |
Introduced After 1/17/92 |
|
Y |
After 3/10/03 |
|
Z |
Before 3/11/03 |
