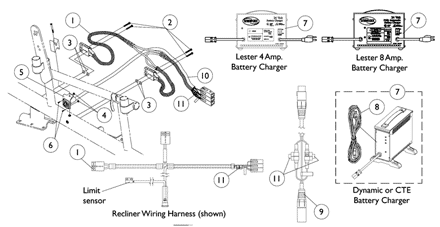

Battery Charger and Harnesses
| Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes |
|---|
Assembly Part Notes
| Note Code | Definition |
|---|---|
| A | On 7/18/01 Lester 8 AMP battery charger was reinstated. |
| B | Plastic wire wrap replaced mesh fabric and heat shrink 9/1/99. #1090357 can be used for chairs made before 9/1/99. |
| C | Not Shown |
| D | Light Duty, 250-S Models Only. |
| E | Before 4/1/03. Charger extension cable requires 1 fuse. Wiring harness requires 2 fuses |
| F | After 3/31/03. Charger extension cable requires 2 fuses. Wiring harness requires 2 fuses |
| G | The 4 amp. Lester charger was obsoleted and replaced with the 8 amp. CTE charger. For wet cell batteries, use the 8 amp. dual mode Lester charger. |
| H | CTE charger introduced 4/1/04. Used on Gel Cell or AGM (Absorbed Glass Mat) batteries. For wet cell batteries refer to the 8 amp. Lester charger. |
| H1 | CTE charger looks exactly the same as Dynamic's charger except for the company name that is silk screened on the narrow side panel, where the charger plug is (hard wired) attached. Serial number starts with 04A00000001. |
| I | No longer available as a service part. Please use 1121086 as its replacement. |
| J | Use Battery Charger part number 1123249 as a replacement. |
