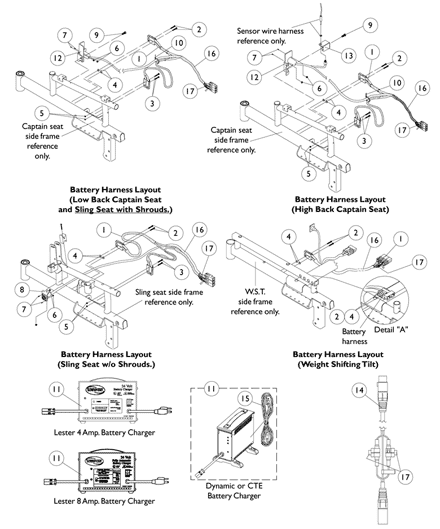

Battery Charger & Harnesses
| Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes |
|---|
Assembly Part Notes
| Note Code | Definition |
|---|---|
| A | #1070573 was replaced with #1076390 and serves as a direct replacement for low back captain seats and sling seats with shrouds for chairs manufactured before 7/1/99. |
| B | On 7/18/01 Lester 8 amp. battery charger was reinstated. |
| C | Plastic wire replaced mesh fabric and heat shrink 9/1/99. Part #1090357 can be used for chairs manufactured before 9/1/99 as well. |
| D | Not Shown. |
| E | Before 4/1/03. Charger extension cable requires 1 fuse and wire harness requires 2 fuses |
| F | Package of 10. |
| G | Light Duty, 250-S Models Only. |
| H | Low Back Captain Seat, Sling Seat with Shrouds and Weight Shifting Tilt. |
| I | High Back Captain Seat. |
| J | (4) each Weight Shifting Tilt; (2) each Non-Weight Shifting Tilt. |
| K | After 3/31/03. Charger extension cable requires 2 fuses and wire harness requires 2 fuses |
| L | CTE 8 Amp. charger replaced the obsoleted 4 Amp. charger as of 4/1/04. |
| M | CTE charger introduced 4/1/04. Used on Gel Cell or AGM (Absorbed Glass Mat) batteries. For wet cell batteries refer to the 8 amp. Lester charger. |
| M1 | CTE charger looks exactly the same as Dynamic’s charger except for the company name that is silk screened on the narrow side panel, where the charger plug is (hard wired) attached. Serial number starts with 04A00000001. |
| N | No longer available as a service part. Please use 1121086 as its replacement. |
| O | Use Battery Charger part number 1123249 as a replacement. |
