Swingarm and Caster with Hardware - Invacare 300

Print this page

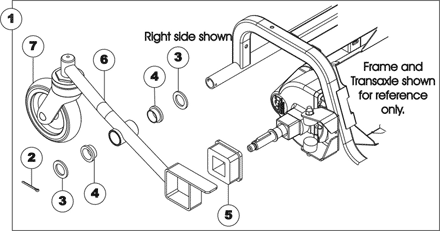

Swingarm and Hardware

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1

1120433

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	NLA - Pin, Cotter (1/8 x 1-1/4")	1	2
3	NLA - Washer, Steel (29/32 x 1-3/8 x 1/8")	1	4
4	NLA - Washer, Shoulder	1	4
5	NLA - Element, Viscous	1	2
6	NLA - Swingarm with Caster - Right (Invacare 300 Scooter)	1	1
6	NLA - Swingarm with Caster - Left (Invacare 300 Scooter)	1	1
7	NLA - Caster, Swivel (5") (Invacare 300 Scooter)	1	2

NLA - Frame, Swingarm Assembly (Invacare 300 Scooter)

1

1

N/A

A ,B

Create/add to Wishlist

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes: Items 2-7; Assembly Includes both Right and Left sides.
B	The Swingarm assembly includes the caster.
C	Includes: Items 7, 9-12 and (Decal and the Swingarm Frame - not shown).
D	Includes: Items 2-5, 7, 9-12, 14-22 and (Decal, Rivet, Nylon Plate, and both Right & Left Swingarm Frames - not shown). Assembly Includes both the Right and Left sides.

Catalog Literature

Parts Books for Invacare® 300 Invacare® 400 Scooter
