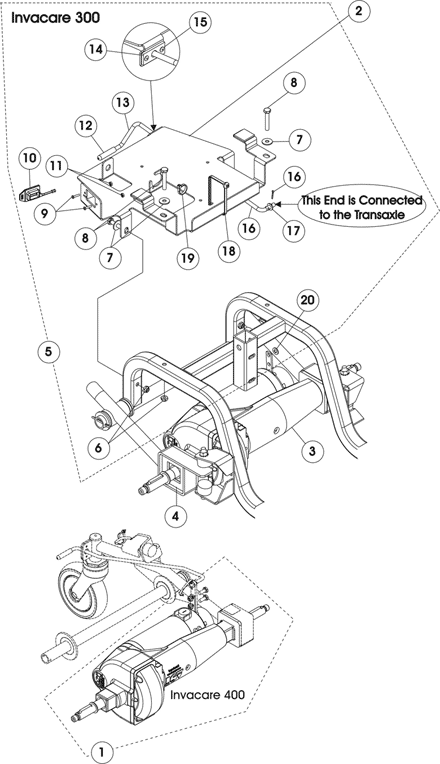

Transaxle and Battery/Controller Tray

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1122045

NLA - Transaxle, MK25A (Invacare 400 Scooter)

N/A

Create/add to Wishlist

1120434

NLA - Controller Tray Assembly

N/A

Create/add to Wishlist

1120469

NLA - Transaxle, MK15A (Invacare 300 Scooter)

N/A

Create/add to Wishlist

1120423

NLA - Element, Viscous

N/A

Create/add to Wishlist

1120436

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
6	Tie Wrap (5-5/8" L)	1	2
7	Screw, Phillips Pan Head (#4-40 x 1/2")	1	2
8	Locknut (1/4-20)	1	4
9	Washer (1/4 x 23/32 x 1/16")	1	8
10	Washer (1/4 x 1/2 x 1/16")	1	2
11	Screw, Hex Head (1/4-20 x 1-5/8")	1	4
12	NLA - Screw, Phillips Pan Head (#6-32 x 1-1/8")	1	3
13	Tip, Plastic, Black	1	1
14	NLA - Rivet (1/8 x 1")	1	2
15	NLA - Pin, Cotter (5/64 x 1/2")	1	1
16	Cover, Connector	1	1
18	NLA - Rod, Release Brake, Black	1	1
19	Tie Wrap (11-1/2" L)	1	1
	Nut, Hex Keps (#4-40)	1	2
	NLA - Nut, Keps (#6-32)	1	3
17	NLA - Plate, Nylon	1	1

NLA - Kit, Controller Tray Hardware (Invacare 300 Scooter)

N/A

Create/add to Wishlist

1121086

Cord, AC Power, 115VAC, 3 Prong On-Board (6'' 6-1/2" L)

$19.00

A ,C ,D

Create/add to Wishlist

7930318

NLA - Package, Screw, Phillips Pan Head (#4-40 x 1/2")

N/A

Create/add to Wishlist

7930323

NLA - Package, Locknut (1/4-20)

N/A

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Not Shown.
B	Includes: Items 6-19.
C	Used on the Zoom 300.
D	Used on the Zoom 400.

Catalog Literature

Parts Books for Invacare® 300 Invacare® 400 Scooter
