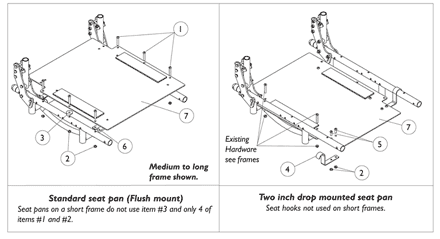

Seat Pan and Attaching Hardware

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1083099

Screw, Socket Button Head (1/4-28 x 1-1/2")

$10.00

Create/add to Wishlist

1025765

Locknut (1/4-28)

$7.20

Create/add to Wishlist

40157X020

Spacer, Coved (1/4 x 1 x 9/16")

$7.20

Create/add to Wishlist

1080617

NLA - Hook, Seat Pan

N/A

Create/add to Wishlist

1055304

Screw, Socket Button Head (1/4-28 x 5/8")

$8.00

Create/add to Wishlist

See Chart

Added to Cart

12" Wide	13" Wide	14" Wide	15" Wide	16" Wide	17" Wide
1120020- NLA	1120021- NLA	1086377- NLA	1086378- NLA	1086379- NLA	1086380- NLA

18" Wide	19" Width	20" Width	21" Width	22" Width
1086381- NLA	1086382- NLA	1086383- NLA	1086384- NLA	1086385- NLA

Create/add to Wishlist

#6 Seat Pan Supports

N/A

Create/add to Wishlist

See Chart

Added to Cart

Chair Width	Short 15-17" Deep	Medium 18-20" Deep	Long 20-22" Deep
12"	1120018- NLA	1120018- NLA	N/A
13"	1120019- NLA	1120019- NLA	N/A
14"	1084971- NLA	1084982- NLA	1084993- NLA
15"	1084972- NLA	1084983- NLA	1084994- NLA
16"	1084973- NLA	1084984- NLA	1084995- NLA
17"	1084974- NLA	1084985- NLA	1084996- NLA
18"	1084975- NLA	1084986- NLA	1084997- NLA
19"	1084976- NLA	1084987- NLA	1084998- NLA
20"	1084977- NLA	1084988- NLA	1084999- NLA
21"	1084978- NLA	1084989- NLA	1085000- NLA
22"	1084979- NLA	1084990- NLA	1085001- NLA

Create/add to Wishlist

#7 Seat Pans - Drop Mounted Seat (Steel)

N/A

Create/add to Wishlist

See Chart

Added to Cart

Chair Width	Short 15-17" Deep	Medium 18-20" Deep	Long 20-22" Deep
12"	1084971- NLA	1084971- NLA	N/A
13"	1084972- NLA	1084972- NLA	N/A
14"	1084973- NLA	1084984- NLA	1084995- NLA
15"	1084974- NLA	1084985- NLA	1084996- NLA
16"	1084975- NLA	1084986- NLA	1084997- NLA
17"	1084976- NLA	1084987- NLA	1084998- NLA
18"	1084977- NLA	1084988- NLA	1084999- NLA
19"	1084978- NLA	1084989- NLA	1085000- NLA
20"	1084979- NLA	1084990- NLA	1085001- NLA
21"	1084980- NLA	1084991- NLA	1085002- NLA
22"	1084981- NLA	1084992- NLA	1085003- NLA

Create/add to Wishlist

#7 Seat Pans - Flush Mounted Seat (Steel)

N/A

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Spacer required only on 18-22" deep chairs

Catalog Literature

Parts Books for Solara® Solara® Limited
