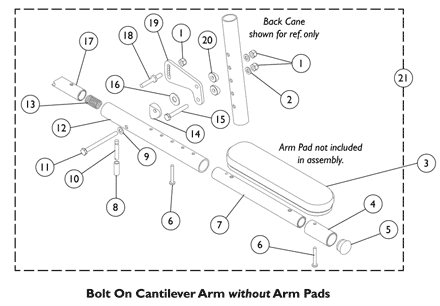

Arms - Cantilever Locking, Bolt On (AT55D & AT55F)
Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
---|---|---|---|---|---|---|---|
2 | 1026907 | Washer (1/4 x 1/2 x 1/16") | 1 | 2 |
$7.20 |
Create/add to WishlistCreate/add to Wishlist |
|
3 | 8881053578 | Kit, Arm Pad w/ Screws, Desk Length (9" L x 2" W) (Pair) | 2 | 1 |
$53.00 |
A |
Create/add to WishlistCreate/add to Wishlist |
3 | 8881053577 | Kit, Arm Pad w/ Screws, Full Length (14" L x 2" W) (Pair) | 2 | 1 |
$53.00 |
A |
Create/add to WishlistCreate/add to Wishlist |
4 | 1042598 | Tube, Arm, Extension, Black | 1 | 1 |
$12.00 |
Create/add to WishlistCreate/add to Wishlist |
|
5 | 1056328 | Plug Button, Black (1") | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
6 | 1026107 | Screw, Phillips Pan Head (#10-32 x 1-3/8") | 1 | 2 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
7 | 1068600 | Tube, Slide, Cantilever Arm, Black | 1 | 1 |
$9.00 |
Create/add to WishlistCreate/add to Wishlist |
|
8 | 1059271 | Tip, Plastic, Black | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
9 | 1026103 | Washer, Nylon (1/4 x 1/2 x 1/32") | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
10 | 1058545 | Lever, Actuator | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
11 | 1059374 | Screw, Hex Head (1/4-28 x 3") | 1 | 1 |
Create/add to WishlistCreate/add to Wishlist |
||
12 | 1068588 | Tube, Arm, Black | 1 | 1 |
Create/add to WishlistCreate/add to Wishlist |
||
13 | 1011511 | Spring, Compression (5/8 x 1 x 3/64") | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
14 | 40157X020 | Spacer, Coved (1/4 x 1 x 9/16") | 1 | 1 |
$7.20 |
Create/add to WishlistCreate/add to Wishlist |
|
15 | 1055348 | Screw, Hex Head (1/4-28 x 1-3/4") | 1 | 1 |
$9.00 |
Create/add to WishlistCreate/add to Wishlist |
|
16 | 1012371 | Washer, Nylon (3/8 x 7/8 x 1/16") | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
17 | 1058232 | Plug, Latch | 1 | 1 |
$19.00 |
Create/add to WishlistCreate/add to Wishlist |
|
18 | 1058231 | NLA - Pin, Locking | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
19 | 1058542 | Bracket, Armrest Mounting, Black | 1 | 1 |
Create/add to WishlistCreate/add to Wishlist |
||
20 | 1026099 | Spacer, Coved (1/4 x 11/16 x 1/2") | 1 | 2 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
21 | 1068654 | Kit, Cantilever Arm, Bolt On - Right | 1 | 1 |
$105.00 |
B ,C |
Create/add to WishlistCreate/add to Wishlist |
21 | 1068655 | Kit, Cantilever Arm, Bolt On - Left | 1 | 1 |
$105.00 |
B ,C |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
Note Code | Definition |
---|---|
A | Specify upholstery color U67 Black when ordering. |
B | Arms do not include Arm Pads, they must be ordered separately. |
C | Includes items 1,2,4-20 |
