Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1122691

NLA - Motor, Tilt Actuator without Mounting Hardware - MK5

N/A

1146351

Motor, Tilt Actuator without Mounting Hardware - MK6i

$1,742.00

1125746

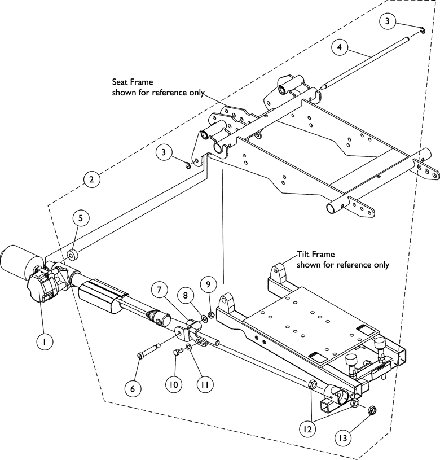

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	NLA - Ring, Retaining	1	2
4	NLA - Rod, Reinforcing	1	1
5	NLA - Stand-Off, Actuator Motor	1	1
6	Screw, Shoulder Hex Socket Head (3/8 x 1-3/4", 5/16-18)	1	1
7	NLA - Bracket, Adjustable Clevis, Black	1	1
8	Washer, Steel (5/16 x 3/4 x 1/16")	1	1
9	Locknut (5/16-18)	1	1
10	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	1
11	Washer, Flat (5/16 x 5/8 x 1/16")	1	1
12	NLA - Nut, Hex Jam (1/2-20)	1	2
13	Locknut (1/2-20)	1	1

Kit, Tilt Actuator Motor Mounting Hardware

$71.00

Note Code	Definition
A	Includes items 3-13
B	For MK6i Electronics only. Includes the Actuator Motor, Bushings and the Integrated Actuator Module (IAM) attached to the motor. The IAM is not available separately. NOTE: Part # 1140033 referenced on the motor is not available, refer to part # 1146351.
C	Includes the Actuator Motor and Bushings. NOTE: Part # 1134695 referenced on the motor is not available, refer to part # 1122691.
