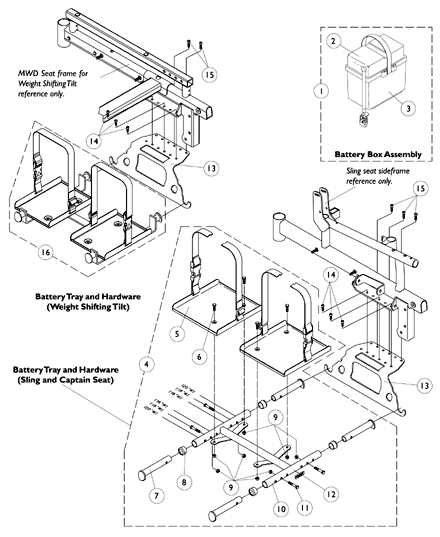

Battery Boxes & Trays
| Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes |
|---|
Assembly Part Notes
| Note Code | Definition |
|---|---|
| A | As of 11/5/99 the battery harness fuse changed from Bussman 60 AMP to a MIDI 80 AMP fuse. This battery box top is compatible for all chairs manufactured before 11/5/99 and must be ordered whenever a replacement Bussman 60 AMP fuse is requested. |
| B | It is recommended that new terminal hardware be ordered when a new battery box top is ordered. |
| C | Hardware includes small battery terminal caps (gray and orange), 1/4-20 x 7/8" hex flange screws, 1/4-20 hex flange nuts, cable ties, locking tab washers and instruction sheet for two batteries. |
| D | Hardware includes battery clamps, battery clamp caps (red and black), small battery terminal caps (red and black), 1/4-20 x 7/8" hex flange screws, 1/4-20 hex flange nuts, cable ties and locking tab washers for two batteries. |
| E | Not Shown. |
| F | After 11/4/99 - Dual Battery Box or After 11/9/00 - Single Battery Box. |
| G | 22NF and UI 250-S Models. |
| H | #1057944 includes: (2) each #1057954 Battery Strap and (2) each #1041433 Handle Pin. |
| I | Includes items 5-13. |
| J | (3) each required for Non-Weight Shifting Tilt and (2) each required for Weight Shifting Tilt. |
| K | 250-S Models. |
| L | Included with item number 3 battery box bottom assembly, |
