Item Number	Description	Bright Plum Metallic	Bright Blue Metallic	Blue Green Chameleon	Candy Apple Red
1	Side Panel - Right	Note-A ,B 1080685	Note-A ,B 1080686- NLA	Note-A ,B ,C 1080687- NLA	Note-A ,B ,C 1085100- NLA
1	Side Panel - Left	Note-A ,B 1080688- NLA	Note-A ,B 1080689- NLA	Note-A ,B ,C 1080690- NLA	Note-A ,B ,C 1085101- NLA
2	Battery Cover	1080694- NLA	1080695- NLA	1080696- NLA	Note-C 1085103- NLA
3	Trunk Lid	1080691- NLA	1080692- NLA	1080693- NLA	Note-C 1085102- NLA

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	Decals not included. See page titled, "Packaging, Literature and Decals."
B	Side Panel includes Rubber Bushing.
C	Shrouds made before 3/1/00 are NLA. See shrouds made after 2/29/00 and select color conversion package.

Item #'s 1-3 Shroud Covers Before 3/1/00 Weight Shifting Tilt

N/A

Create/add to Wishlist

4

1079197

NLA - Bracket, Side Shroud, Black - Right

1

N/A

Create/add to Wishlist

4

1079198

NLA - Bracket, Side Shroud, Black - Left

1

N/A

Create/add to Wishlist

5

1045267

Screw, Hex Head w/ Patch (1/4-20 x 3/4")

1

4

$10.00

Create/add to Wishlist

6

1028516

Washer, Steel (3/16 x 7/16 x 1/16")

1

2

$3.00

Create/add to Wishlist

7

7930332

NLA - Locknut, High Profile (#10-32)

25

1

N/A

Create/add to Wishlist

8

1070575

NLA - Screw, SEMS w/ Washer (#10-32 x 7/8")

1

2

N/A

Create/add to Wishlist

9

1070588

NLA - Screw, Phillips Truss Head (#10-32 x 1/2")

1

2

N/A

Create/add to Wishlist

10

1028755

Screw, Phillips Pan Head (#10-32 x 5/8")

1

2

$10.00

Create/add to Wishlist

11

1070587

Washer, Flat (3/16 x 5/8 x 1/16")

1

2

$10.00

Create/add to Wishlist

1079196

NLA - Hardware, Side Panel Attaching

1

N/A

A ,B

Create/add to Wishlist

12

1070577

NLA - Plate, Trunk Clip

1

2

N/A

Create/add to Wishlist

13

1070588

NLA - Screw, Phillips Truss Head (#10-32 x 1/2")

1

6

N/A

Create/add to Wishlist

14

7930332

NLA - Locknut, High Profile (#10-32)

25

1

N/A

Create/add to Wishlist

15

1070583

NLA - Stud, Wing Head (3/4" Long)

1

2

N/A

Create/add to Wishlist

16

1070581

NLA - Washer, Nylon Cupped (9/32 x 19/32 x 3/32")

1

4

N/A

Create/add to Wishlist

17

1070580

NLA - Washer, Nylon Retainer (1/4 x 1/2 x 1/32")

1

4

N/A

Create/add to Wishlist

18

1013497

NLA - Fastener, Turn, Clip-On (1/4")

1

4

N/A

Create/add to Wishlist

19

1070594

NLA - Bushing, Rubber

1

2

N/A

Create/add to Wishlist

20

40157X019

Coved Spacer

1

2

N/A

Note Code	Definition
A	Not Shown.
B	Includes items 4-11 and 20.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

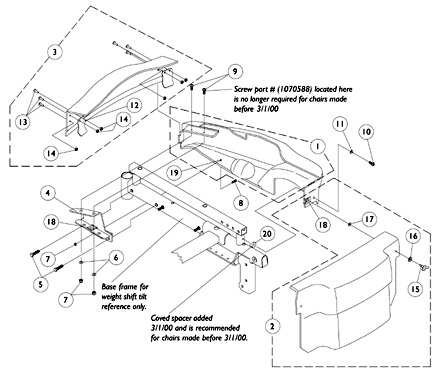

Shroud Covers - Weight Shifting Tilt (Before 3/1/00)
