Tilt Assembly - Mounting Hardware - TDX

Print this page

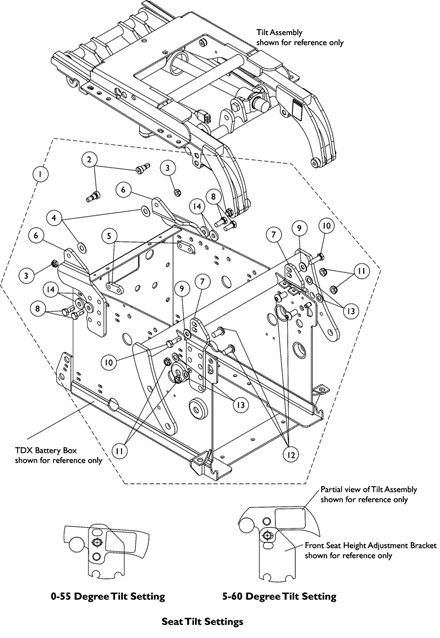

Tilt Assembly Mounting Hardware For TDX

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1

1126352

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Screw, Shoulder Hex Socket Head w/ Patch (3/8" x 3/8", 5/16-18)	1	2
3	Locknut (5/16-18)	1	2
4	NLA - Washer, Nylon (25/64 x 7/8 x 1/32")	1	2
5	NLA - Nut, Strap	1	2
6	NLA - Bracket, Seat Height Adjustment Rear, Black - Right	1	1
6	NLA - Bracket, Seat Height Adjustment Rear, Black - Left	1	1
7	NLA - Bracket, Seat Height Adjustment Front - Right	1	1
7	NLA - Bracket, Seat Height Adjustment Front, Black - Left	1	1
8	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	4
9	Washer, Steel (5/16 x 3/4 x 1/16")	1	2
10	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1")	1	2
11	Locknut, Low Profile (3/8-16)	1	4
12	NLA - Screw, Socket Button Head (3/8-16 x 3/4")	1	4
13	Washer, Flat (3/8 x 11/16 x 1/16")	1	4
14	Washer, Flat (21/64 x 53/64 x 7/64")	1	4

NLA - Kit, Tilt Assembly Mounting Hardware For TDX

1

1

N/A

A

Create/add to Wishlist

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2-14

Catalog Literature

Parts Books for Formula ™ PTO Plus
