Packaging & Literature - TDX

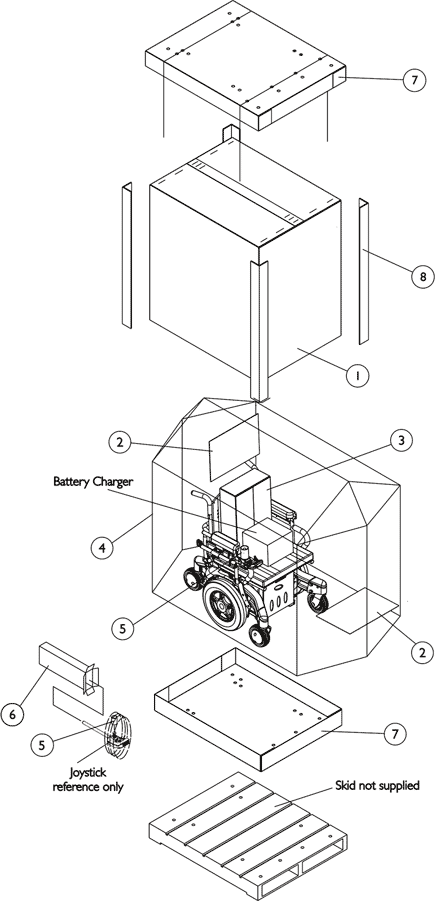

Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
---|---|---|---|---|---|---|---|
1 | 1036028 | Carton, Cover | 1 | 1 | B |
Create/add to WishlistCreate/add to Wishlist |
|
2 | 40131X161 | Insert, Plain Pad | 1 | 2 |
$7.00 |
Create/add to WishlistCreate/add to Wishlist |
|
3 | 40131X011 | NLA - Carton, Front Riggings | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
4 | 1015592 | Bag, Poly (72" L x 35" W x 19" D) | 1 | 1 |
$9.00 |
Create/add to WishlistCreate/add to Wishlist |
|
5 | 1043198 | NLA - Tube, Paper | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
6 | 1012001 | NLA - Carton, Joystick | 1 | 1 | N/A | E |
Create/add to WishlistCreate/add to Wishlist |
7 | 1030362 | Carton, Tray | 1 | 2 |
$13.00 |
A |
Create/add to WishlistCreate/add to Wishlist |
7 | 1036027 | Carton, Tray | 1 | 2 | B |
Create/add to WishlistCreate/add to Wishlist |
|
8 | 1115174 | Carton, Corner Reinforcement | 1 | 4 |
Create/add to WishlistCreate/add to Wishlist |
||
00077X031 | NLA - Warranty Card | 1 | 1 | N/A | C |
Create/add to WishlistCreate/add to Wishlist |
|
1114809 | NLA - Owner''s Manual, TDX w/ MK5 Electronics | 1 | 1 | N/A | C |
Create/add to WishlistCreate/add to Wishlist |
|
1164348 | Mailer, Return, Mercury Free | 1 | 1 | D |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
Note Code | Definition |
---|---|
A | 16" wide - 20" wide models |
B | 21" wide - 22" wide models |
C | Not Shown |
D | For Massachusetts providers only |
E | Order part #40131X011 to use as a replacement Joystick Carton also. |
