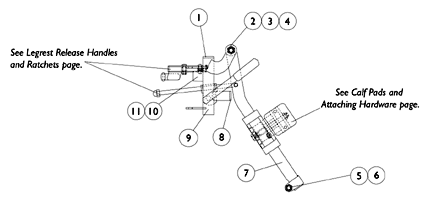

Front Riggings - Legrest Supports - P904A
Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
---|---|---|---|---|---|---|---|
2 | 11919X000 | NLA - Screw, Slotted Truss Head (3/8-16 x 1-1/2") | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
3 | 1058636 | NLA - Washer, Nylon (25/64 x 7/8 x 1/32") | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
4 | 40363X000 | Hex Nut (3/8"-16) | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
5 | 7930330 | NLA - Locknut (5/16-24) | 25 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
6 | 1026030 | Bolt, Lug (5/16-24 x 1-3/8") | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
7 | 8881048851 | Tube, Elevating Adjustable Support, Color - Right | 1 | 1 | A |
Create/add to WishlistCreate/add to Wishlist |
|
7 | 8881048852 | Tube, Elevating Adjustable Support, Color - Left | 1 | 1 |
$37.00 |
A |
Create/add to WishlistCreate/add to Wishlist |
8 | 1027097 | Plug Button, Black (3/4") | 1 | 1 |
$7.50 |
Create/add to WishlistCreate/add to Wishlist |
|
9 | 8881058664 | NLA - Tube, Legrest Support, Color - Right | 1 | 1 | N/A | A |
Create/add to WishlistCreate/add to Wishlist |
9 | 8881058665 | NLA - Tube, Legrest Support, Color - Left | 1 | 1 | N/A | A |
Create/add to WishlistCreate/add to Wishlist |
10 | 1022874 | Bumper | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
11 | 1030979 | Screw, Phillips Pan Head Tap (#10-32 x 3/4") | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
8881058646 | NLA - Legrest Support Assembly, Adult, Color - Right | 1 | 1 | N/A | A ,B |
Create/add to WishlistCreate/add to Wishlist |
|
8881058647 | NLA - Legrest Support Assembly, Adult, Color - Left | 1 | 1 | N/A | A ,B |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
Note Code | Definition |
---|---|
A | Specify frame color when ordering. See page titled, "Frame Finishes, Touch-Up Paint and Upholstery Options." |
B | Not Shown. |
