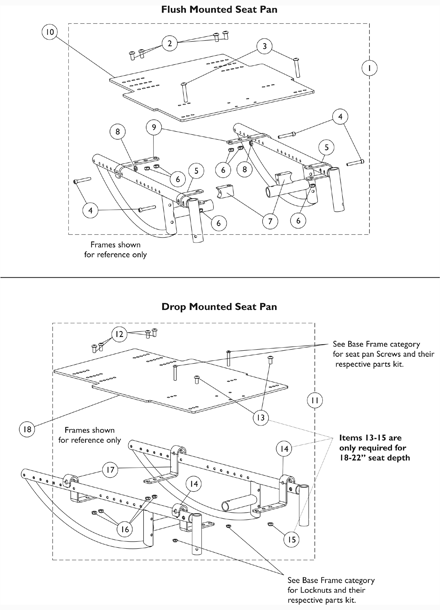

Seat Pans & Hardware

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1128823

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
8	Locknut (1/4-28)	1	2
9	NLA - Bracket, Flush Seat Pan Mounting, Rear, Black	1	2
2	Screw, Socket Button Head (5/16-24 x 5/8")	1	4
3	NLA - Screw, Socket Button Head (5/16-24 x 1-3/4")	1	2
4	NLA - Screw, Socket Head (1/4-28 x 1-1/2")	1	4
5	Bracket, Flush Seat Pan Mounting, Front, Black	1	2
6	Locknut (5/16-24)	1	6
7	NLA - Block, Seat Pan Mounting	1	2

NLA - Kit, Seat Pan Mounting Hardware - Flush Mounted Seat

Create/add to Wishlist

1012962

Screw, Socket Button Head (5/16-24 x 5/8")

Create/add to Wishlist

1093263

NLA - Screw, Socket Button Head (5/16-24 x 1-3/4")

N/A

Create/add to Wishlist

1126296

Bracket, Flush Seat Pan Mounting, Front, Black

Create/add to Wishlist

1025730

Locknut (5/16-24)

$8.00

Create/add to Wishlist

1025765

Locknut (1/4-28)

$7.20

Create/add to Wishlist

See Chart

Added to Cart

Seat Pan Depth Range	For 12-14" Wide Seat Frame	For 14" Wide Seat Frame	For 15-17" Wide Seat Frame	For 18-20" Wide Seat Frame	For 21-22" Wide Seat Frame
12-16" Deep	1127800	N/A	1127801	1128282- NLA	N/A
15-19" Deep	1127803	N/A	1127804 MSRP: $196.00	1127805	1127806
18-22" Deep	N/A	1127795	1127796 MSRP: $196.00	1127797 MSRP: $196.00	1127798 MSRP: $196.00

Create/add to Wishlist

#10 Flush Mounted Seat Pan (Aluminum)

N/A

Create/add to Wishlist

1128824

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
12	Screw, Socket Button Head (5/16-24 x 5/8")	1	4
13	Screw, Socket Button Head (5/16-24 x 5/8")	1	2
14	NLA - Bracket, Drop Seat Pan Mounting, Black	1	2
15	Locknut (5/16-24)	1	2
16	Locknut (5/16-24)	1	4
17	NLA - Bracket, Drop Seat Pan Mounting, Black	1	2

Kit, Seat Pan Mounting Hardware - Drop Mounted Seat

B ,C

Create/add to Wishlist

See Chart

Added to Cart

Seat Pan Depth Range	For 12-13" Wide Seat Frame	For 14-16" Wide Seat Frame	For 17-19" Wide Seat Frame	For 20" Wide Seat Frame	For 20-22" Wide Seat Frame
12-16"	1127799	1127800	1127801	1128282- NLA	N/A
15-19"	1127802	1127803	1127804 MSRP: $196.00	N/A	1127805
18-22"	N/A	1127795	1127796 MSRP: $196.00	N/A	1127797 MSRP: $196.00

Create/add to Wishlist

#18 Drop Mounted Seat Pan (Aluminum)

N/A

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2 thru 9. Kit provides enough parts for ALL chair configurations with Flush Mounted Seat Pans.
B	Includes items 12 thru 17. Kit provides enough parts for ALL chair configurations with Drop Mounted Seat Pans.
C	Items 13 thru 15 are only required for chairs that are 18-22" deep

Catalog Literature

Parts Books for Solara® 2G Spree GT™
