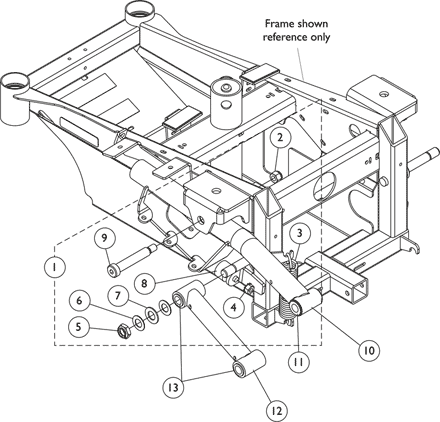

Walking Beams and Hardware - SureStep

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1127398

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	NLA - Locknut, High Profile (3/8-16)	1	1
3	Spring, Extension (1 x 4-1/2" L)	1	1
4	NLA - Nut, Keps (5/16-18)	1	1
5	Locknut (1/2-20)	1	1
6	NLA - Washer (1/2 x 29/32 x 1/32")	1	2
7	NLA - Washer, Nylon (9/16 x 1 x 5/8")	1	1
8	NLA - Bumper, Rubber (1" Diameter x 5/8")	1	1
9	Screw, Shoulder Hex Socket Head (1/2 x 2-1/2", 3/8-16)	1	1

Kit, SureStep Walking Beam Hardware

$50.00

Create/add to Wishlist

1127368

NLA - Walking Beam, SureStep - Right

N/A

Create/add to Wishlist

1127369

NLA - Walking Beam, SureStep - Left

N/A

Create/add to Wishlist

1127344

Bearing, Flange (1/2 x 7/8")

$13.00

Create/add to Wishlist

1109018

Tube, Pivot, Black

Create/add to Wishlist

1106485

Bushing (1/2 x 5/8")

$10.00

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2-9
B	Includes item 11
C	Includes item 13

Catalog Literature

Parts Books for Pronto® M50™/ M51™ with SureStep® (After 1/19/05) Pronto® M61™ with SureStep®
