Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1128734

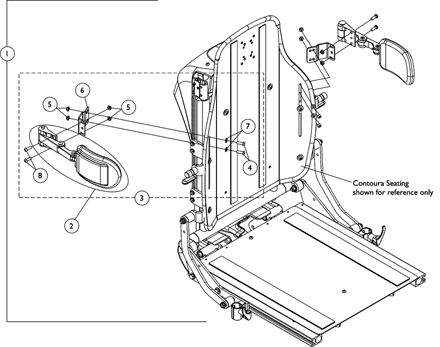

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Support, Swingaway Lateral w/ Medium Pads (5" W x 3" H), Stealth (TWB-CPR)	2	1
4	Screw, Socket Button (1/4-20 x 3/4")	1	4
5	Locknut (1/4-20)	1	8
6	Bracket, Positioning Strap, Black	1	2
7	Washer (1/4 x 1/2 x 1/16")	1	4
8	NLA - Screw, Socket Button Head (1/4-20 x 1/2")	1	4
2	Support, Swingaway Lateral w/ Medium Pads (5" W x 3" H), Stealth (TWB-CPR)	2	1
4	Screw, Socket Button (1/4-20 x 3/4")	1	4
5	Locknut (1/4-20)	1	8
6	Bracket, Positioning Strap, Black	1	2
7	Washer (1/4 x 1/2 x 1/16")	1	4
8	NLA - Screw, Socket Button Head (1/4-20 x 1/2")	1	4
2	Support, Swingaway Lateral w/ Medium Pads (5" W x 3" H), Stealth (TWB-CPR)	2	2
4	Screw, Socket Button (1/4-20 x 3/4")	1	4
5	Locknut (1/4-20)	1	8
6	Bracket, Positioning Strap, Black	1	2
7	Washer (1/4 x 1/2 x 1/16")	1	4
8	NLA - Screw, Socket Button Head (1/4-20 x 1/2")	1	4
2	Support, Swingaway Lateral w/ Medium Pads (5" W x 3" H), Stealth (TWB-CPR)	2	1
4	Screw, Socket Button (1/4-20 x 3/4")	1	4
5	Locknut (1/4-20)	1	8
6	Bracket, Positioning Strap, Black	1	2
7	Washer (1/4 x 1/2 x 1/16")	1	4
8	NLA - Screw, Socket Button Head (1/4-20 x 1/2")	1	4
2	Support, Swingaway Lateral w/ Medium Pads (5" W x 3" H), Stealth (TWB-CPR)	2	1
4	Screw, Socket Button (1/4-20 x 3/4")	1	4
5	Locknut (1/4-20)	1	8
6	Bracket, Positioning Strap, Black	1	2
7	Washer (1/4 x 1/2 x 1/16")	1	4
8	NLA - Screw, Socket Button Head (1/4-20 x 1/2")	1	4

Kit, Swingaway Lateral Support Assemblies w/ Medium Pads (5" W x 3" H), Stealth (Pair)

$1,107.00

1128735

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Support, Swingaway Lateral w/ Large Pads (6" W x 4" H), Stealth (TWB-CPRL)	2	1
4	Screw, Socket Button (1/4-20 x 3/4")	1	4
5	Locknut (1/4-20)	1	8
6	Bracket, Positioning Strap, Black	1	2
7	Washer (1/4 x 1/2 x 1/16")	1	4
8	NLA - Screw, Socket Button Head (1/4-20 x 1/2")	1	4
2	Support, Swingaway Lateral w/ Large Pads (6" W x 4" H), Stealth (TWB-CPRL)	2	1
4	Screw, Socket Button (1/4-20 x 3/4")	1	4
5	Locknut (1/4-20)	1	8
6	Bracket, Positioning Strap, Black	1	2
8	NLA - Screw, Socket Button Head (1/4-20 x 1/2")	1	4
7	Washer (1/4 x 1/2 x 1/16")	1	4
2	Support, Swingaway Lateral w/ Large Pads (6" W x 4" H), Stealth (TWB-CPRL)	2	2
4	Screw, Socket Button (1/4-20 x 3/4")	1	4
5	Locknut (1/4-20)	1	8
6	Bracket, Positioning Strap, Black	1	2
7	Washer (1/4 x 1/2 x 1/16")	1	4
8	NLA - Screw, Socket Button Head (1/4-20 x 1/2")	1	4
2	Support, Swingaway Lateral w/ Large Pads (6" W x 4" H), Stealth (TWB-CPRL)	2	1
4	Screw, Socket Button (1/4-20 x 3/4")	1	4
5	Locknut (1/4-20)	1	8
6	Bracket, Positioning Strap, Black	1	2
7	Washer (1/4 x 1/2 x 1/16")	1	4
8	NLA - Screw, Socket Button Head (1/4-20 x 1/2")	1	4
2	Support, Swingaway Lateral w/ Large Pads (6" W x 4" H), Stealth (TWB-CPRL)	2	1
4	Screw, Socket Button (1/4-20 x 3/4")	1	4
5	Locknut (1/4-20)	1	8
6	Bracket, Positioning Strap, Black	1	2
7	Washer (1/4 x 1/2 x 1/16")	1	4
8	NLA - Screw, Socket Button Head (1/4-20 x 1/2")	1	4

Kit, Swingaway Lateral Support Assemblies w/ Large Pads (6" W x 4" H), Stealth (Pair)

$1,107.00

1128733

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
4	Screw, Socket Button (1/4-20 x 3/4")	1	4
5	Locknut (1/4-20)	1	8
6	Bracket, Positioning Strap, Black	1	2
7	Washer (1/4 x 1/2 x 1/16")	1	4
8	NLA - Screw, Socket Button Head (1/4-20 x 1/2")	1	4
4	Screw, Socket Button (1/4-20 x 3/4")	1	4
5	Locknut (1/4-20)	1	8
6	Bracket, Positioning Strap, Black	1	2
7	Washer (1/4 x 1/2 x 1/16")	1	4
8	NLA - Screw, Socket Button Head (1/4-20 x 1/2")	1	4
4	Screw, Socket Button (1/4-20 x 3/4")	1	4
5	Locknut (1/4-20)	1	8
6	Bracket, Positioning Strap, Black	1	2
7	Washer (1/4 x 1/2 x 1/16")	1	4
8	NLA - Screw, Socket Button Head (1/4-20 x 1/2")	1	4
4	Screw, Socket Button (1/4-20 x 3/4")	1	4
5	Locknut (1/4-20)	1	8
6	Bracket, Positioning Strap, Black	1	2
7	Washer (1/4 x 1/2 x 1/16")	1	4
8	NLA - Screw, Socket Button Head (1/4-20 x 1/2")	1	4
4	Screw, Socket Button (1/4-20 x 3/4")	1	4
5	Locknut (1/4-20)	1	8
6	Bracket, Positioning Strap, Black	1	2
7	Washer (1/4 x 1/2 x 1/16")	1	4
8	NLA - Screw, Socket Button Head (1/4-20 x 1/2")	1	4

Kit, Swingaway Lateral Support Mounting Hardware, Stealth (Pair)

$113.00

Note Code	Definition
A	Includes items 2 and 4-8
B	Includes items 4-8
