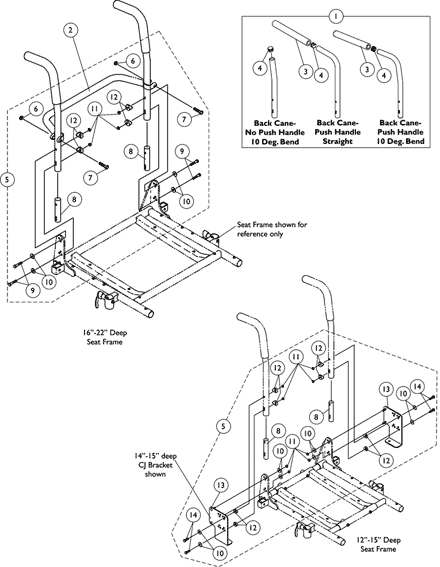

Canes - Back - Spreader Bars & Attaching Hardware
Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |||||||||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
2 |
See Chart
Added to Cart
Create/add to WishlistCreate/add to Wishlist |
#2 Spreader Bar | N/A | N/A | N/A |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||||||||||||||||||||||||||
3 | 1135506 | Package, Foam Hand Grip (9" L) | 10 | 1 |
$40.00 |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||||||||||||||||||||||||||
4 | 1130582 | Package, Plug Button, Black (7/8") | 10 | 1 |
$30.00 |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||||||||||||||||||||||||||
5 |
1070499
|
NLA - Kit, Back Cane Attaching Hardware, For CJ Bracket 12-13" Deep Seat | 2 | 1 | N/A | A ,E |
Create/add to WishlistCreate/add to Wishlist |
||||||||||||||||||||||||||||||||||||||||||||||||
5 |
1070500
|
Kit, Back Cane Attaching Hardware, For CJ Bracket 14-15" Deep Seat | 2 | 1 | N/A | A ,E |
Create/add to WishlistCreate/add to Wishlist |
||||||||||||||||||||||||||||||||||||||||||||||||
5 |
1070457
|
NLA - Kit, Back Cane Attaching Hardware | 2 | 1 | N/A | B ,C |
Create/add to WishlistCreate/add to Wishlist |
||||||||||||||||||||||||||||||||||||||||||||||||
5 |
1070458
|
NLA - Kit, Back Cane Attaching Hardware | 2 | 1 | N/A | B ,D |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
Note Code | Definition |
---|---|
A | Includes items 8 and 10-14 |
B | Includes items 6-12 |
C | Used for 14"-20" high back canes |
D | Used for 21"-24" high back canes |
E | Prior to 7/9/04 new back cane attaching hardware must be ordered for 12"-15" deep seats that use CJ brackets. The threaded insert was replaced with a non-threaded insert for 14"-20" high back canes. |
