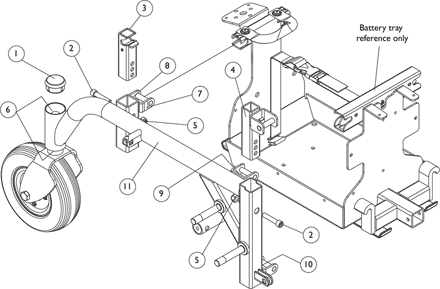

Frames - Side and Hardware - Non Tilt Chairs
Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
---|---|---|---|---|---|---|---|
2 | 1021344 | Screw, Socket Head (5/16-18 x 1-1/2") | 1 | 2 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
3 | 1123397 | NLA - Slide Tube, Seat Height Adjustment -Rear | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
3 | 1152528 | NLA - Slide Tube Assembly, Seat Height Adjustment, Rear | 1 | 2 | N/A | D |
Create/add to WishlistCreate/add to Wishlist |
4 | 1123524 | NLA - Tube, Slide, Seat Height Adjustment, Front | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
5 | 1026158 | Locknut (5/16-18) | 1 | 2 |
$9.20 |
Create/add to WishlistCreate/add to Wishlist |
|
6 | 40117X006 | Bearing (5/8") | 1 | 2 |
$11.00 |
Create/add to WishlistCreate/add to Wishlist |
|
7 | 1109198 | NLA - Label, Yellow Stripe | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
8 | 1109200 | NLA - Label Marker (2) | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
9 | 1109199 | NLA - Label Marker (1) | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
10 | 1109201 | NLA - Label Marker (3) | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
11 | 1109320 | NLA - Side Frame Assembly - Right | 1 | 1 | N/A | A |
Create/add to WishlistCreate/add to Wishlist |
11 | 1109321 | NLA - Side Frame Assembly - Left | 1 | 1 | N/A | A |
Create/add to WishlistCreate/add to Wishlist |
1123398 | Kit, Side Frame Hardware | 1 | 1 | B ,C |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
Note Code | Definition |
---|---|
A | Includes items 6-10 |
B | Includes items 1-5 |
C | Not Shown |
D | When replacing a "Slide Tube, Seat Height Adjustment - Rear" part # 1123397 with the part # 1152528 both sides must be replaced simultaneously. |
